Interlock Anti Passback 4 Doors Access Control Panel Board Remote Open Web Server

  • Interlock Anti Passback 4 Doors Access Control Panel Board Remote Open Web Server
Place of Origin Guangdong , China
Brand Name Goldantell
Certification GAT-T404
Model Number CE,IS9001
Minimum Order Quantity 1
Price negotiation
Packaging Details standard export packing
Delivery Time 1-3 working days
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 5000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Card Capacity 40000pcs Type ID / IC Card , Wristband
Sensing Read Card Distance <10 Cm Record Capacity 200000 Pcs
Optional Ways Can Combine With Fingerprint Recognition System Or Password. Communication TCP/IP
Highlight

4 Doors Access Control Panel

,

Anti Passback Access Control Panel

,

Anti Passback Turnstile Security Systems
Leave a Message
Product Description

Interlock Anti Passback 4 Doors Access Control Panel Board Remote Open Web Server



Inter lock anti pass back function Multiple network remote open and webserver 4 doors access control panel board



Description

Goldantell Intelligent management RFID card / wristband read system is suitable for different kinds of turnstile / barrier gate or doors. It is most used in the office buildings , amusement park, subway , bus station or residence ,and so on.



Specification

parameter Four door access control
communication RS485-RS232
description Control 4 door ,get in and out door by swiping card, or get in by swiping card and get out door by button
Size of PCB board 218mm *106mm
Size of case 273mm*228mm*65mm



Power supply

 12VDC 4-7A
Power consumption of circuit board Less than 100mA
Input format of reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID , EM , Mifare one etc))
Quantity of readers 4 pair
Door control 4 door
Door opening time extending setting 1-600 seconds(adjustable)
MAX quantity of controller N*256
  Remark: N denotes quantity of computer serial port or quantity of 485hub port, support 256pcs ports
Operation Temperature -15 C~75 C
Operation Humidity ≤95%,No Condensation
Quantity of users 20,000 Users
Quantity of Event Buffers(offline) 100,000 event buffers
Power interruption protection measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m TCP/IP: Depends on net coverage area
Compulsive open and close door at long time yes
Fire and alarm linkage If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Open long time at specified time yes
Open door in remote distance Yes
Electronic map yes
Urgency locking yes
First card unlocking yes
Unlock based on internal and external validation yes
Keypad (card+ password, supper password) yes



Product Display

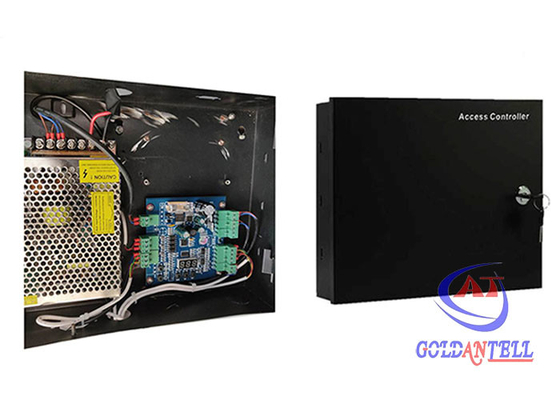

Interlock Anti Passback 4 Doors Access Control Panel Board Remote Open Web Server 0

Interlock Anti Passback 4 Doors Access Control Panel Board Remote Open Web Server 1



Functions  Application

1. Access control and security Theme park, concerts Counterfeit prevention, loyalty VIP Program and customers club.

2. Swimming pool and SPA, gym.

3. event management People identification in leisure center, medical care or amusement sites



Our Advantages

1. Rfid wristband can be made in different sizes and different colors.

2. The material can be in cotton, polyester and different colors.

3. We are a large direct manufacturer with high tachnology.

4. Color fastness can reach 5 grade

5. The goods can be produced in very short time, sample only 1 day, goods 3 days.

6. Delivery goods in time after receive the payment.
