High Speed Pedestrian Facial Recognition System Turnsitle Gate Etrance & Exit Access
Goldantell Facial Recognition System Turnsitle Gate offer a reliable and efficient method to ensure
only authorized users are allowed access to each area of a building. The GAT-661 is an attractive swing turnstile
that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct
a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
Facial Recognition System Turnsitle Specification
| Framework |
304 Stainless Steel |
| Dimensions |
1100*260*1000mm |
| passage width |
550-600mm |
| Dry Contact |
12V |
| LED indicating light |
One |
| Card-reading window: |
Two |
| Rated power |
120W |
| Operating temperature |
-25℃ ~ +60℃, RH ≤90% |
| Related humidity |
≥90%RH |
| Comunication Interface |
RS485,distance ≤1200m |
| Power supply |
AC 220V/110V ±10% 50/60MHZ (optional) |
| OpeningTransit speed: |
65-75persons per minute |
| Closing Transit speed: |
35-45per minute |
Product Size of Facial Recognition System Turnsitle

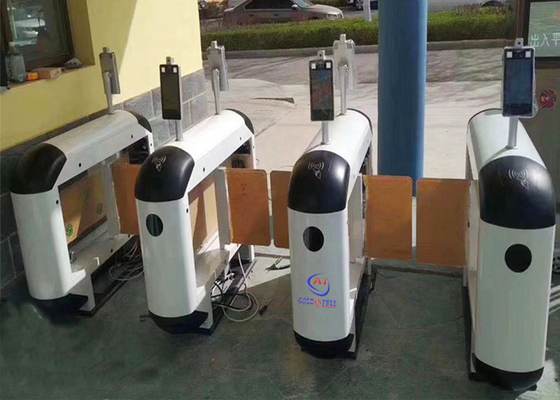

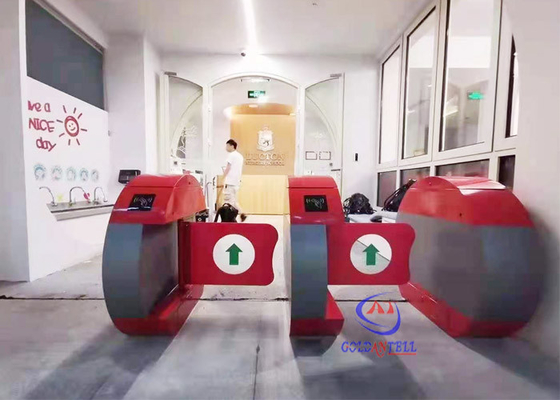

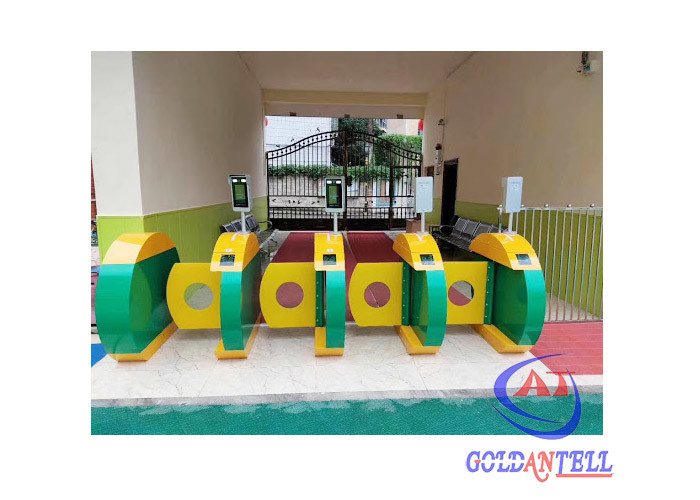

Project Pictures of Facial Recognition System Turnsitle

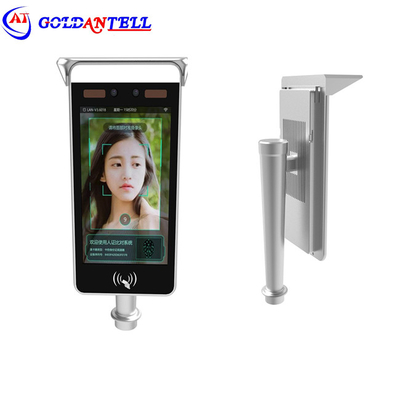

Facial Recognition System Specification
|
1
|
Body dimension
|
505*φ114mm (height * diameter) , cylindrical
|
|
2
|
Screen size
|
7 inches, full viewing angle IPS LCD screen
|
|
3
|
CPU
|
4-core 1.8GHz
|
|
4
|
memory
|
RAM DDR3 2GB+Local storage TF card 8GB
|
|
5
|
interface
|
RS232 interfaces, 485, Wiegand input, Wiegand output,HDMI2.0 Type-A interface
|
|
6
|
Respond speed
|
fastest 0.2s
|
|
7
|
network
|
supports wired, 2.4Gwifi, 4G network card
|
|
8
|
relay control module
|
1 output
|
|
9
|
USB
|
USB2.0 interface 3
|
FAQ:
1-Can you do OEM service of Facial Recognition System Turnsitle?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
2-How long is the production time?
For standard item
Below 10 sets:7-10 working days
10-20 sets:15 working days
50-100 sets:20 working days
200-500 sets:25-30 working days
Custom logo or system installation, 3-5 working days longer.
3-Does the RFID&facial recongnition access control system installation service available ?
Yes,RFID card sysetm,facial system, qr code&barcode system,fingerprint system,token system,esd system,
manual button etc are available,our factory will install system for you,you will get full complete system.
4-How about the payment terms?
TT,western union,L/C,credit card ,paypal(for sample order)etc
5-How do you send the product to me,how long?
For sample,normally send by air or express,about 3-5 working days
Above 10 pairs,recommend send by sea, 7-45 days depend on different countries.
6-What is the package of the Facial Recognition System Turnsitle?
Inside with a carton package.Then outside,there are 2 kinds of packages
under your choice:crate package or closed wooden package.
7-How about the guarantee and after sale service?
We have 24 months quality assurance, We own well-tranied and passional sales
& after- sale services who can speak fluent Engligh language
8-How to do the installation?
We provide user manual and online instruction to help with the installation,if you don't have experience,
pls don't worry,our after sale service person are very patient,they have experience help with 80 year old person to do installation.
9-How do I contact with you directly?
Contact person:Charlene Lu
MP/ wechat/ whatsapp +86 18025437918
Skype:Charlene0809
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
