Hot-sale automatic recognition access column swing turnstile panels type single channel manual pole price
Brief Description
1. Suitable for office areas, hotels, passage gates, office buildings, schools, shopping malls,shops, communities, construction sites and other public services and management projects where face access control is required.
2. CE certificated, IP54, can used for outdoor or indoor.
3. Built-in mechanical lock to prevent the forced opening of arms.
4. Barrier Material: Acrylic glass, SS304 and so on.
5. Bi-directional or single way optional.

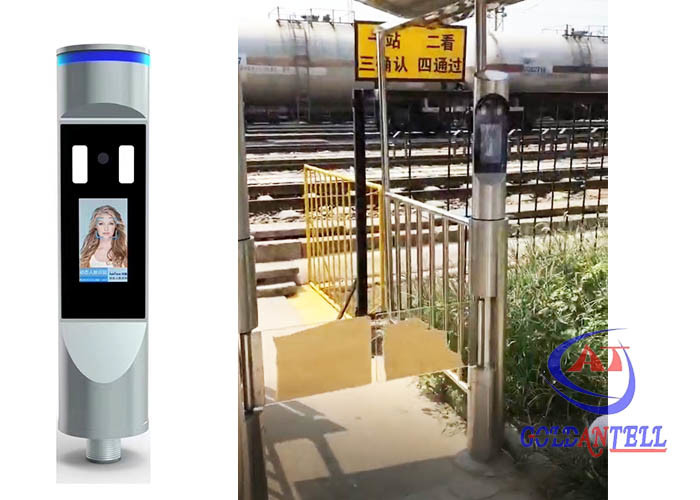

6. This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
Technical specification Of FACE Recognition Terminal
| 1 |
Body dimension |
505*φ114mm (height * diameter) , cylindrical |
| 2 |
Screen size |
7 inches, full viewing angle IPS LCD screen
|
| 3 |
CPU |
4-core 1.8GHz |
| 4 |
memory |
RAM DDR3 2GB+Local storage TF card 8GB
|
| 5 |
interface |
RS232 interfaces, 485, Wiegand input, Wiegand output,HDMI2.0 Type-A interface |
| 6 |
Respond speed |
fastest 0.2s |
| 7 |
network |
supports wired, 2.4Gwifi, 4G network card |
| 8 |
relay control module |
1 output |
| 9 |
USB |
USB2.0 interface 3 |
Technical specification Of Swing Turnstile GAT-612
| 1 |
Cabinet dimension |
diameter of pillar is 168mm, the height is 1050mm |
| 2 |
Cabinet material |
304 stainless steel (316 ss can be custom-made) |
| 3 |
Switching power supply |
AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 |
opening/closing time |
0.2s |
| 5 |
Arm material |
thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 |
Access mode |
single in/out or Bidirectional |
| 7 |
Passthrough Width |
550 mm - 1800 mm for a pair, or 60-90mm for a pc |
| 8 |
Swing arm angle |
180 degree |
| 9 |
Communication interface |
RS485, TCP/IP |
| 10 |
Time of opening/closing |
1 second |
| 11 |
Optimal flow rate |
35 persons/min (open), 30 persons/min (closed) |
| 12 |
Reset time after break down |
default 10s can be changed to fit different demands |
| 13 |
MCBF |
5,000,000 Cycles |
| 14 |
Working humidity |
30%~95% |
Security Features
1. 1: N face recognition, the face database supports 20,000 faces, and the top1 hit rate is 99.99%;
2. Support the deployment method of the public network and local area network;
3. Support screen display content configuration;
4. Support recognition distance configuration.
5. Problem-self-checking function.
6. When the power off, the arm open automatically and power on again, the arm will be held automatically.
7. Various control functions: external button, remote control, bar code, IC or ID, etc.
8. Fast opening and closing time.
Operation Application
Railway
Exhibition
Hotel
school
lobby
Our Advantages
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How does your factory control the quality?
Vivian: Quality controlling from the beginning to the ending.
3. Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
4. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
5. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
