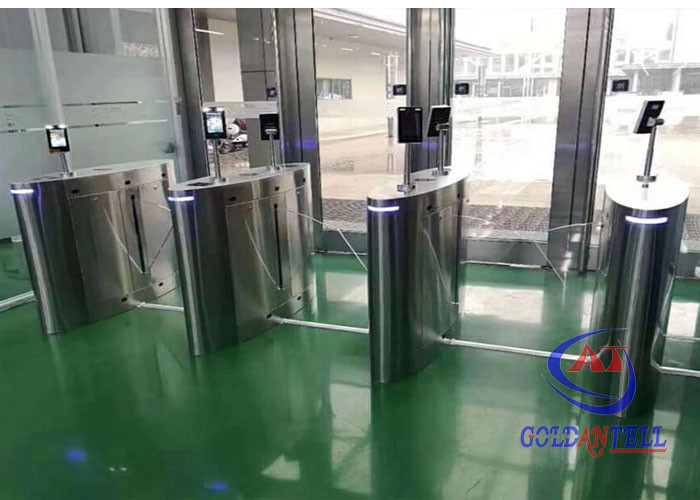

Counter RFID Optical Flap Barrier Turnstile With Face Recognition Half Height

Counter RFID Optical Flap Barrier Turnstile With Face Recognition Half Height
Counter RFID Optical Flap Barrier Turnstile With Face Recognition Half Height
video play

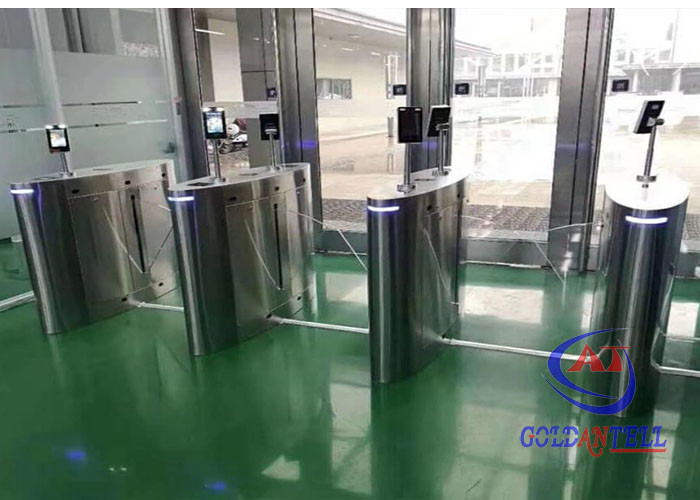

Large Image :  Counter RFID Optical Flap Barrier Turnstile With Face Recognition Half Height

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-NEW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 1,000pcs per month
Detailed Product Description
Product Name: 304 SUS Flap Turnstile Communication Port: RS485 ,TCP/IP
Power Supply: AC110 Or AC220+/-10% Size Of Product: 1200*300*1000mm
Application: Indoor&outdoor Net Weight: 70KG
Gross Weight: 75KG Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Material: 304 Stainless Steel/316 Stainless Steel
Highlight:

Optical Flap Barrier Turnstile

,

Barrier Turnstile With Face Recognition

,

Half Height Barrier Turnstile

Counter RFID Optical flap barrier with face recognition price Half Height door access solution for entry



Description

1. Lighting LED indicator: green and red indicate the passing information.

2. Special stretch wing design, save closing time, improve the passage speed, prevent trailing , increase the security level.

3. Bi-directional lanes, integrate with latest facial detection temperature scanner, RFID / fingerprint / QR or barcode / ESD access control system, to manage.

4. Superior quality stainless steel material, can also customize for client.

5. Custom service: we can completely make customized products for you, like printing LOGO, design, etc,



Specifications

Item

( single motor ), OR ( double motors )

Name

Bridge type flap turnstile

Size:

1200mm (L) * 300mm (W) * 1000mm (H)

Retractable arm length:

260 mm
Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Passage width: ≤600mm
Normal running life: 3 million
Time of opening/closing: 0.6 second

Time to work after  power on:

3 seconds

Reset time after break down:

10 seconds
Direction: single or bi-directional (optional)
Drive motor: DC 24 V brush motor
Working environment:

indoor/outdoor (with a tent over)    -10℃~70℃

Communication interface:

standard RS 485 interface, distance ≤1200m

Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA

Relative humidity: ≤90% coagulation free
Housing material:

domestic standard 304 # stainless steel

Working voltage: AC220±10%V 50±10%HZ



Functions & Features

1. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
2. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
3. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.

4. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.

5. It is with a standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by a computer.
6. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
7. Can manager and long-range control the turnstile directly by managing the computer.

8. Box house can lengthen, swing arm lengthen

9. Normally open or closed can be adjust to meet the requirements of the different place. Sound and light alarm prompt functions



Project Application

  • Movie theaters,
  • Fitness halls,
  • Country clubs,
  • Fairground,
  • Clubs,
  • Swimming Hall,
  • Fitness Gym.
  • Hotel,
  • Factory,
  • Bank,
  • Hospital,
  • School

Counter RFID Optical Flap Barrier Turnstile With Face Recognition Half Height 0



Competitive Advantage
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.



FAQ

1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
