Heavy Duty Reserved DC 6v electric Automatic remote control parking space saver with logo
Battery usage
1. When the battery is fully charged, the expected use is 300 operations or approximately 3 months assuming 2 lifts and 2 downs per day.
2. When the battery is low and dry, an audible alarm will sound to remind the owner to charge the battery. Open the control box with the key and take out of the battery, take home to re-charge. This must be plugged into 220/240 volt power. After 12 hours’ recharging, it’ll be ok.
3. In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.
Standard Specification
| Item |
GAT-ABS10 |
| Power Voltage (V) |
DC 6~7V |
| Dimension (mm) |
450x450x65mm |
| Static Power (W) |
12m |
| Working Power (Storage Battery) |
6V 7 AH |
| Working Current (A) |
1.5 A |
| Remote Controlled Distance |
≤30m |
| Environment Temperature |
-30~+65 |
| Up or Down Time |
5-6 seconds |
| N.W (kg) |
11 |
| Work Time/Recharge |
3-4 Months |
| G.W (kg) |
12.5 |
| UP Height (mm) |
390 |
| Down Height (mm) |
60 |
Security Functions
1. Heavy Duty and Durable: The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, which is waterproof, rustproof and dust proof enough to last about 5 years in hard weather. The sway arm made of steel rolling won`t deform even it is crushed by a vehicle.
2. Anti- disconnecting for Power Safety: The power connection is anti- disconnecting design in case the use misplace the battery causing short circuit.
3. Auto- repositioning: the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
4. Noise- free: The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and less friction, also goods for quiet environment.
5. Manual control in case of no power: In case the power is off, just manually control the parking lock in emergency.
6. Alarm Against a Low Battery: If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.
Details Photos

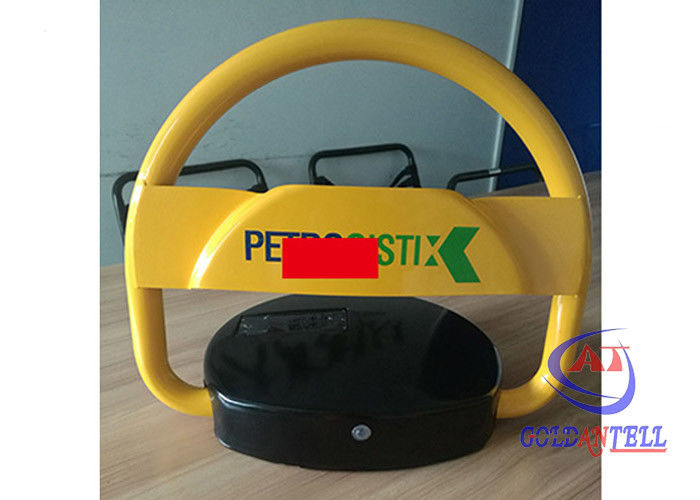

Custom Display
- 3. Equip multiple quantity of remote controls for one unit lock, max. 20pcs. ( regularly, 2pcs per unit)
