Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second

  • Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second
  • Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second
  • Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificate
Model Number GAT-305 series
Minimum Order Quantity 1pc
Price negotiation
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 110~240 V(AC) Direction In Or Out, Or Two Ways
Warranty 1 Year Odm/oem Accepted
Passage Width 600mm
Highlight

Fingerprint Slap Turnstile Gate

,

Mechanism Zk Slap Turnstile Gate

,

RS485 Tripod Barrier Gate
Leave a Message
Product Description
Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second
Hot-selling semi-automatic slap turnstile mechanism with ZK Tech fingerprint door system for secure access control.
Product Overview
  • Standard Functions: Rectangular box with brake lever design provides orderly passage control while preventing unauthorized access
  • Emergency Release: Arms automatically disengage in emergency situations
  • Wide Application: Suitable for stations, subways, factories, office buildings, intelligent communities, hotels, and clubs
  • System Integration: Combines mechanical, electrical, and microcontroller technologies with RFID card and barcode reader compatibility
Technical Specifications
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage AC110/220±10%V, 50±10%HZ
Working movement DC24V solenoid valve
Arm width 510 mm
Support force of arm 60kg
Passage width ≤600 mm
Opening time 0.2 second
Pass speed 30 persons/min
Emergency feature Arms open automatically when power fails
Normal running life 3 million cycles
LED indicator Direction arrow
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Relative humidity ≤90% (non-condensing)
Communication interface Standard RS485 interface, distance ≤1200m
Housing material 304# stainless steel
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Key Features
  • Alarm Function: Automatically triggers alarm and locks arms when forced entry is attempted
  • Configurable Operation: Working conditions can be set via main control board buttons
  • Auto-Lift Function: Arms automatically lift with alert when power is restored
  • Auto-Drop Function: Arms automatically drop (default) or allow free passage during power failure
  • Automatic Reset: Cancels passage authority if not used within adjustable time period (1-60s)

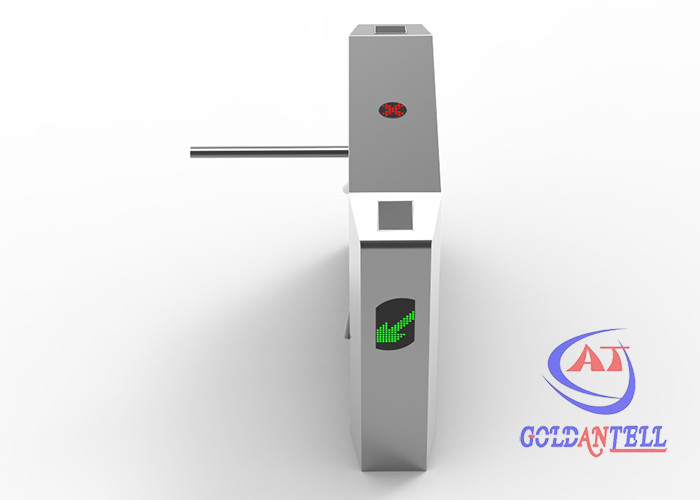

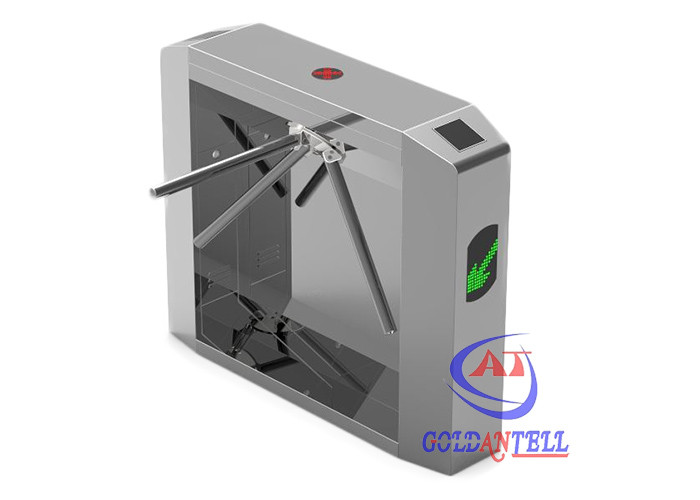

Product Image
Mechanism Zk RS485 Fingerprint Slap Turnstile Gate 0.2 Second 0
Typical Applications
  • Public Places: Subways, airports, stations, libraries, museums, parks, exhibition halls
  • Commercial Buildings: Offices, hotels, banks, shopping centers, residential complexes
  • Entertainment Venues: Cinemas, fitness clubs, swimming pools, stadiums
  • Institutional Facilities: Schools, hospitals, factories, prisons, government buildings
Frequently Asked Questions
How long is the lead time?
Standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom designs or special items require additional 3-10 working days
