RS485 Full Height Glass Obstacle Swing Gate Turnstile

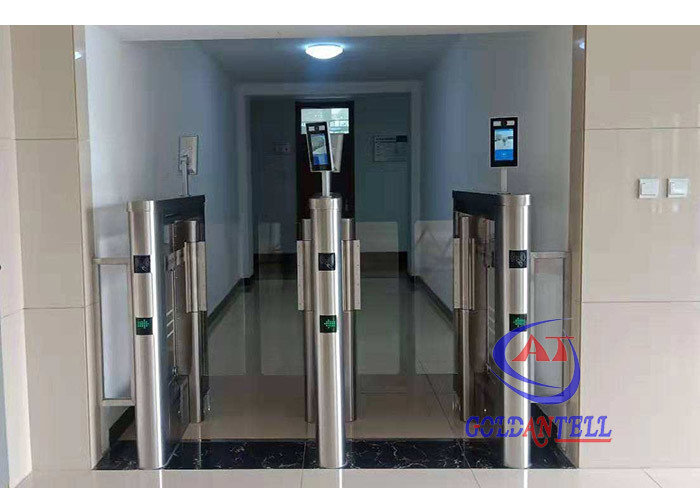

Large Image : RS485 Full Height Glass Obstacle Swing Gate Turnstile

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-645 series

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7-9 working days after received your payment
Payment Terms:	T/T,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Size:	15001201000mm	Product Name:	Width 900mm Double Wing Turnstile
Application:	Movie Or Fitness Certer Or Hotel Or Restaurant Entrance	Communication Port:	RS485 ,TCP/IP
Passway Width:	In 900mm (can Be Custom According To Your Requirement)	Material:	304stainless Steel
N.W:	65kg	G.W:	70kg
Highlight:	Glass Obstacle Swing Gate Turnstile , Full Height Swing Gate Turnstile , RS485 Temperature Detection Turnstile

RS485 Full Height Glass Obstacle Swing Gate Turnstile

High-level temperature detection swing gate turnstile with automatic sensor and full height glass obstacle.

Function Description

Infrared reset function (Optional: 4 pairs or 6 pairs Infrared)
Infrared induction clamp function (4 pairs Infrared)
Compatible with door access control systems, consumption systems, biometric recognition systems, and ESD systems
Bidirectional operation (pedestrians can enter and exit from one pair of turnstiles)
Configurable working conditions via main control board buttons
Anti-pinch function with mechanical and infrared induction protection

Product Introduction

Installation locations: Subways, airports, stations, libraries, movie theaters, fitness centers, clubs, swimming pools, gyms
Control system compatibility: RFID cards, fingerprint systems, facial recognition systems, and other control systems
Special feature: Double wings design allows passage width up to 900mm

Technical Parameters

Working voltage	AC220±10%V, 50±10%HZ
Pass width	600mm, or 900mm (custom-made)
Pass speed	40 persons/min (open), 25-30 persons/min (closed)
Normal running life	3 million cycles
Time of opening/closing	0.6 second
Time to work after power on	3 seconds
Reset time after break down	10 seconds
Working environment	Indoor/outdoor (with tent) -10℃～70℃
Communication interface	Standard RS485 interface, distance ≤1200m
Input interface	+12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity	≤90% (non-condensing)

Design Show

Face Recognition Device Technology:

Standard face database: 10,000 people (optional ID card reader, IC card reader and access control Wiegand signal output)
Built-in MIC with audio output interface
10.1-inch high-resolution top LVDS LCD screen
High-accuracy face recognition algorithm with offline capability (0.2S response time)

Competitive Advantage

ODM/OEM services available including product shape design, custom logos, packaging, and sizes
Comprehensive turnstile and access control system solutions for project support
Friendly and professional customer service available within 16 hours
Excellent after-sales service with remote troubleshooting and free spare parts replacement within 1 year
