SS304 Motorized Turnstile Barrier Gate With Barcode

  • SS304 Motorized Turnstile Barrier Gate With Barcode
  • SS304 Motorized Turnstile Barrier Gate With Barcode
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-new
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Health Projects,hotel,canteens, Hospitals, Office Buildings, Customs, Agencies, Tourist Attractions, Factories Identification Speed Face Detection And Tracking 20 Ms
Identification Height 1.2-2.2 M Wiegand Format 26/34
Size Of Product 1400*280*1000 Mm
Highlight

Motorized Turnstile Barrier Gate

,

SS304 Turnstile Barrier Gate

,

Barcode Waist High Turnstile
Leave a Message
Product Description

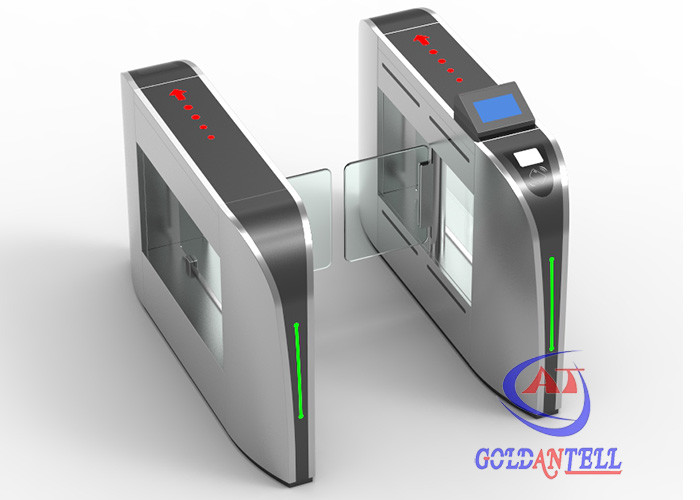

SS304 Motorized Turnstile Barrier Gate With Barcode
304 Stainless steel amusement motorized turnstile tourniquet with barcode Access control keypad lock
Swing turnstile barrier Series are widely suitable for indoor & outdoor applications. It is an optimized affordable solution for Airport, Lobby, commercial office building, factory, bus station, game park, colleges, and banks. But the Optical Turnstile with colorful led light is NOT advised to be installed outdoor or near the seaside.
Access control system
  • Multiple access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system
  • Support special function: counter, coin/token acceptor
  • ESD tester system and function
Function & features
  • Safety function(anti-pinching). By default wing will auto-reverse if the IR sensor detected obstacle within the wing area. This avoids wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the wing to ensure wing is easily visible
  • Anti-tailgating/ anti-retrogradation function: wing can be set to pause if IR sensor detected obstacle nearby wing area during closing
  • Auto-close timer protection. wings will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent an unauthorized user from sneaking into the building
  • LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross)
  • Emergency evacuation. During a power failure, wings will automatically open. Wings will automatically close back after the power supply resumed
Specifications
Display monitor 7 inches LCD screen
Technical parameters of turnstile gate
Size of housing: 1400mm (L) * 300mm (W) * 1000mm (H)
Pass through width widely 60 /90cm ,or (120cm and custom-made) for a pair
Pass speed: 40 persons/min (open), 25-30 persons/min (closed)
Drive motor: standard DC 24 V brush motor ( or custom brushless)
Normal running life: 3 million
Time of opening/closing: 0.6 second
Time to work after power on: 3 seconds
Reset time after break down: 10 seconds
Direction: single or bi-directional (optional)
Working environment: indoor/outdoor (with a tent over) -10℃～70℃
Communication interface: standard RS 485 interface, distance ≤1200m
Input interface: +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity: ≤90% coagulation free
Housing material: domestic standard 304 # stainless steel
Working voltage: AC220±10%V 50±10%HZ
Project Example
a. Movie theaters, fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym.
b. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
SS304 Motorized Turnstile Barrier Gate With Barcode 0
Our Advantage
  1. Friendly and professional customer service people help you in 16 hours
  2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package
  3. We can provide not only product, but also system software management.Save your time and cost
  4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee
