Product Details:
Payment & Shipping Terms:
|
| Lifting Height: | 390mm | Application: | Car Parking,Personal Parking Space |
|---|---|---|---|
| Remote Control Distance: | 30 Meters | Color: | Yellow Or Custom |
| Feature: | Waterproof,Red Reflective Stickers | Material: | A3 Steel |
| Highlight: | 1.5A Parking Reservation Lock,Solar Powered Parking Reservation Lock,30m Remote Control Parking Lock |
||
Solar Powered Car Parking Automatic Barrier system with many remote controllers and anti-theft locks
Standard feature & function
1.Heavy duty & durabe:the sway arm with steel rolling can bear max. 5tons weight.
2.Lower noise: smooth running working way, pretty flexible responding speed.
3.IP54: With sway plastic , waterproof, rustproof and dust-proof. Enough to last the about 5 years of usage under the heavy weather.
Our Advantages
High quality material: A3 steel, durable; IP 54, waterproof and rustproof.
Special shape design: we have the design patent.
Easy operation & use: we offer the specific user manual to help you quickly use it.
Excellent service: pre-sales and after sales service. Pre-sale: we do confirm all details with you before sending products, such as the working voltage and so on. After- sale: if you have any problem in installation or operation, just contact us in time, our team do help you to solve it.
Standard Specification
| Item | GAT-ABS10 |
| Power Voltage (V) | DC 6~7V |
| Dimension (mm) | 450x450x65mm |
| Static Power (W) | 12m |
| Working Power (Storage Battery) | 6V 7 AH |
| Working Current (A) | 1.5 A |
| Remote Controlled Distance | ≤30m |
| Environment Temperature | -30~+65 |
| Up or Down Time | 5-6 seconds |
| N.W (kg) | 11 |
| Work Time/Recharge | 3-4 Months |
| G.W (kg) | 12.5 |
| UP Height (mm) | 390 |
| Down Height (mm) | 60 |

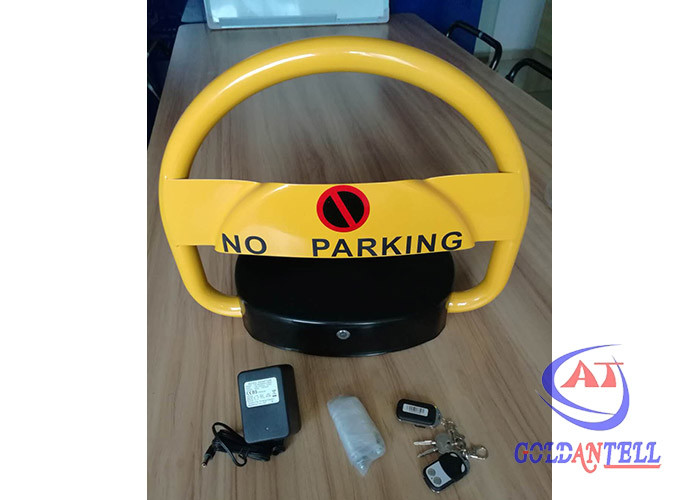

Spare Parts
1 user instruction in English
2 remote controllers
1 charger
4 fixed screws
1 Battery (optional)
Custom Display
Battery & Charge Instruction
1.When the battery is fully charged, the expected use is 300 operations or approximate 3 months assuming 2 lifts and 2 downs per day.
2.When the battery is low and dry, an audible alarm will sound to remind the owner to charge the battery. Open the control box with the key and take out of the battery, take home to re-charge. This must be plugged into 220/240 volt power. After 12 hours’ recharging, it’ll be ok.
3.In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.
Package Details
| Packing details | standard carton package, G.W:13kg/pc |
| Leading time | for sample order, can ship in 2 working days if in stock |
| >50pcs order, will ship in 7 working days if without customized requirements | |
| Shipping ways supported and recommended |
if >50pcs, the Ocean shipping is recommended. if <50pcs, the shipping cost may be same by sea. we can also offer the shipping service by different ways. |
