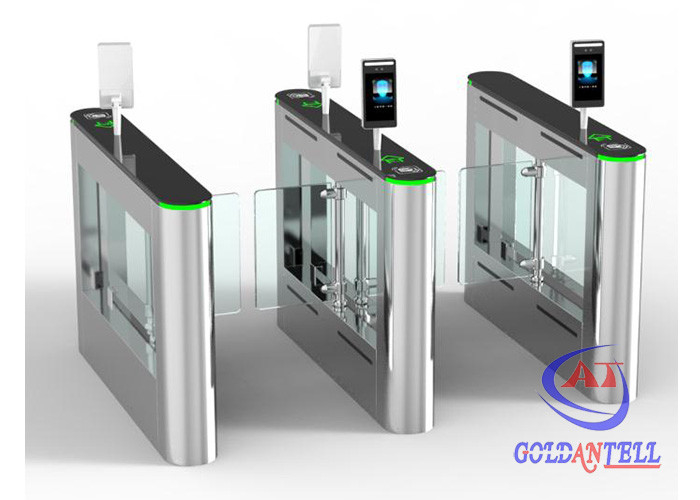

Logical ticket QR code security swing barrier door face and temperature recognition for Residence entrance
Quick Description
◊ Face and temperature recognition device is one of the world's top thermal imaging thermometer modules, The equipment uses thermal imaging to detect the overall temperature distribution of the face for temperature calculation, Has greatly increased the human body temperature fast accurate contactless screening.
◊ At the same time using near-infrared in vivo detection and visible light face recognition technology cross application, In vivo detection efficiency and face recognition accuracy are greatly improved.
◊ System Integration, this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.
Specifications List
| Technical parameters of Face recognition terminal |
| Size |
253*139*26.5 MM (length*width*height) |
| Appearance Material |
Aluminum alloy case, tempered glass panel |
| Identification distance |
0.3-0.5 m |
| Display monitor |
8 inches LCD screen |
| Technical parameters of turnstile gate |
| Size of housing: |
1400mm (L) * 200mm (W) * 1000mm (H) |
| Pass through width |
widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or custom brushless) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC220±10%V 50±10%HZ |
Functions & features of face recognition system
1. Support face recognition field photo preservation;
2. Support serial port, Wigan output, output content support configuration;
3. Supports offline LAN equipment deployment and online HTTP transmission cloud deployment;
4. All-black environment ir face detection after complementary recognition;
More Access control system Available
1. multiple access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Project Application
a. Movie theaters, fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Gym.
b. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance
