Digital Facial Recognition Turnstile , Swing Barrier Gate Access Control System

  • Digital Facial Recognition Turnstile , Swing Barrier Gate Access Control System
  • Digital Facial Recognition Turnstile , Swing Barrier Gate Access Control System
  • Digital Facial Recognition Turnstile , Swing Barrier Gate Access Control System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-601
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 1200*280*1000mm Communication Port RS485 ,TCP/IP
Application Movie Or Fitness Certer Or Hotel Or Restaurant Entrance Product Name Width 900mm Double Wing Turnstile
Passway Width In 900mm (can Be Custom According To Your Requirement) N.W 65kg
G.W 70kg Material 304stainless Steel
Highlight

face recognition security system

,

face recognition door access system
Leave a Message
Product Description

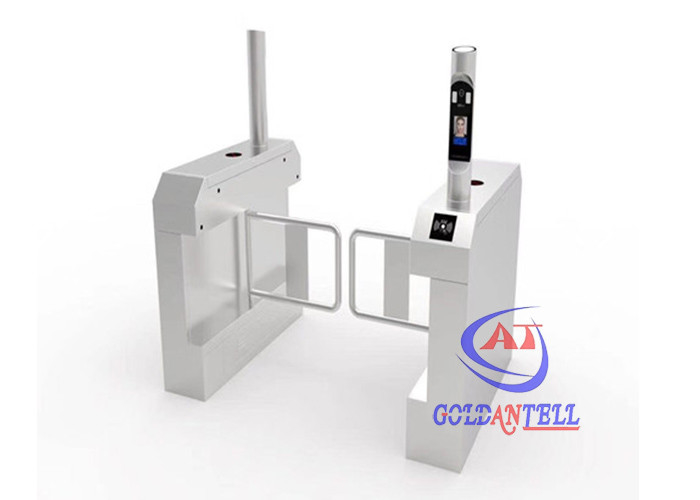

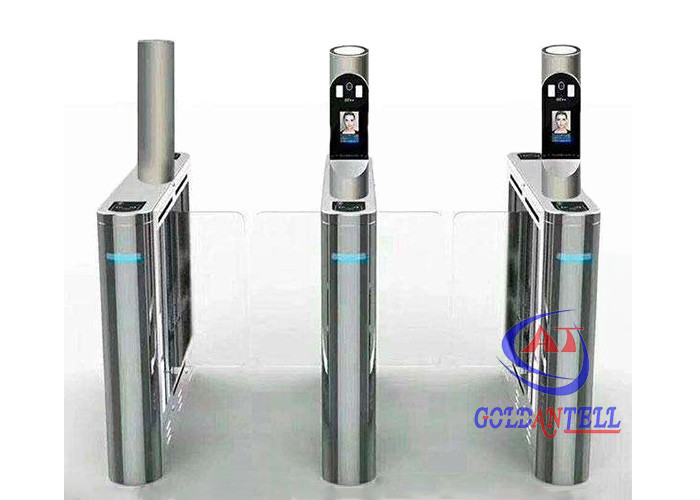

Digital Facial Recognition Turnstile, Swing Barrier Gate Access Control System
Professional Access Control System Swing Barrier Gate Face Recognition Turnstile
Product Introduction
  • Installation & Application: Suitable for subways, airports, stations, libraries, movie theaters, fitness halls, clubs, swimming pools, and gyms.
  • Control System: Supports RFID cards, fingerprint systems, facial recognition systems, and other control systems.
  • Special Feature: Double wings design allows for a passway width of 900mm.
Technical Parameters
Parameter Specification
Working voltage AC220±10%V, 50±10%HZ
Pass width 600mm, or 900mm (custom-made)
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Design Show - Face Recognition Device
  • Standard face database: 10,000 people capacity
  • Optional ID card reader, IC card reader and access control Wiegand signal output
  • Built-in MIC with audio output interface
  • 10.1-inch high-resolution top LVDS LCD screen
  • High-accuracy face recognition algorithm with offline capability, fastest response time of 0.2S
Function Description
  • Collision avoidance function protects internal transmission mechanism
  • Automatic reset function with adjustable timing (1-60s) to meet fire protection needs
  • Optional infrared reset function (4 or 6 pairs infrared)
  • Infrared induction clamp function (4 pairs infrared)
  • Compatible with various systems: access control, consumption, biometric recognition, ESD
  • Bidirectional operation (both entry and exit through same turnstiles)
  • Working conditions adjustable via main control board buttons
  • Anti-pinch function with mechanical/infrared protection
  • Automatic door closure for illegal entry, tailgating, or negative direction break-ins
  • Automatic locking without open signal
Competitive Advantage
  • ODM/OEM services including product design, custom logos, packaging, and sizes
  • Comprehensive access control system solutions to support your projects
  • Friendly professional customer service available 16 hours/day
  • Excellent after-sales service with remote troubleshooting and free spare parts replacement within 1 year
