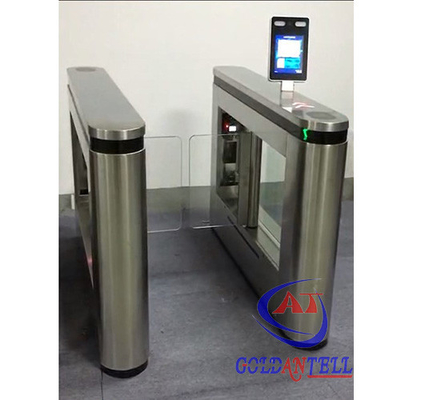

one way entry gates Smart face recognition turnstile price with multi function provision
Application
Access Width : 900mm space, more comfortable for pedestrian to pass through the gate.
Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Classification
Vertical shape
Bridge shape:this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways)
Specification
|
Product Model
|
GAT-687 |
|
Product Size
|
1400/1300 *200*1000mm |
|
Path width
|
in 600,900 mm (for one pair), or more |
|
Direction
|
single or bi-directional (optional) |
|
Time of opening/closing
|
0.6 second |
|
Pass speed
|
40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down |
10 seconds |
| Normal running life |
3 million |
| Working environment |
indoor/outdoor (with a tent over) -10℃~70℃ |
| Drive motor |
DC24V brush motor
|
Function Description
-Directional LED Optical Signals: Green Arrow or RED Cross signage.
-With fault self-check function and Alarm function, convenience for maintains.
-Mechanism is specially processed ,more durable.
-Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
-Ensures rapid, efficient & safe access control.
-Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
-Photo Electric Beams installed standard for all models.
