Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader

Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader
Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader

Large Image :  Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-211
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Bus Station RFID Flap Barrier Gate With Counter System And QR Code / Bar Code Reader Working Voltage:: AC220±10%V 50±10%HZ
Net Weight: 90KG Passage Width:: ≤600 Mm
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Materal: 304 Stainless Steel/316 Stainless Steel
Service Life: 3000,000 Times Close And Open Time: 0.6S
Direction:: Single Or Bi-directional (optional)
Highlight:

pedestrian turnstile gate

,

turn style gate

Office Baffle barrier turnstile security gate barcode fingerprint and RFID reader



Flap Barrier Gate Specifications:





Item



GAT-203-1( single motor )
GAT-203-2( double motors )





Working voltage:





AC220±10%V 50±10%HZ



Retractable arm length:





265mm



Time of opening:





0.6 second



Passage width:





≤600mm



Size





 1200mm /1400mm(L) * 280mm (W) * 980mm (H)



Reset time after break down:





10 seconds



Direction:





single or bi-directional (optional)



Drive motor:





DC 24 V brush motor



Number of led lamp:





1pcs or 3 pcs



Input interface:





+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA





Transit speed





30-40 people/minute




Features of Flap Barrier :



1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control




Advantages



  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Convenient installation and maintenance.
  • Malfunction self-detection. Which is easy for operation and maintenance.
  • Audible and visual alarm in case of unauthorized access
  • Friendly and professional customer service people help you in 16 hours





detail profile :

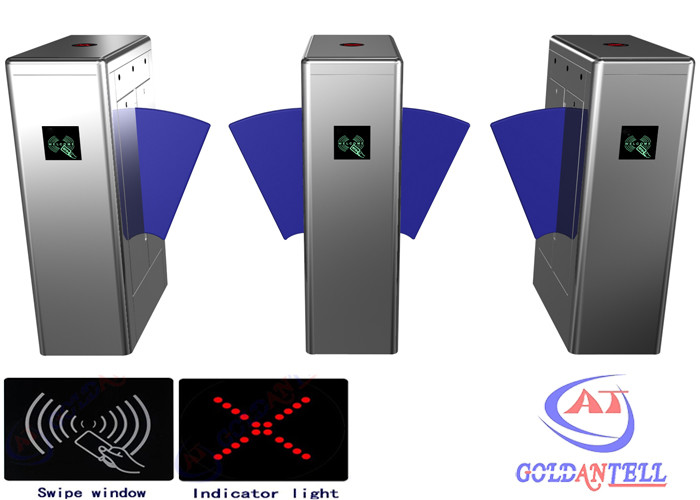

Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader 0

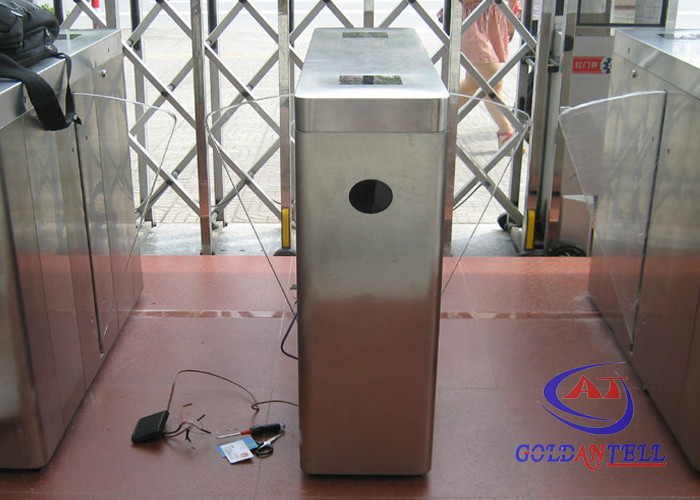

Office Baffle barrier RFID Turnstile security gate barcode fingerprint and RFID reader 1
