Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Application: | Prison, Factory, Government Etc. | Size Of Product: | 3100*1400*2250mm (MM) |
|---|---|---|---|
| Material: | 304 Stainless Steel/316 Stainless Steel | Type: | Single Access Full Height Turnstile |
| Net Weight: | 300KG | Gross Weight: | 350KG |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port: | RS485 ,TCP/IP |
| Passage Width: | 600mm In Turnstyle | ||
| Highlight: | controlled access turnstiles,security turnstile gate |
||

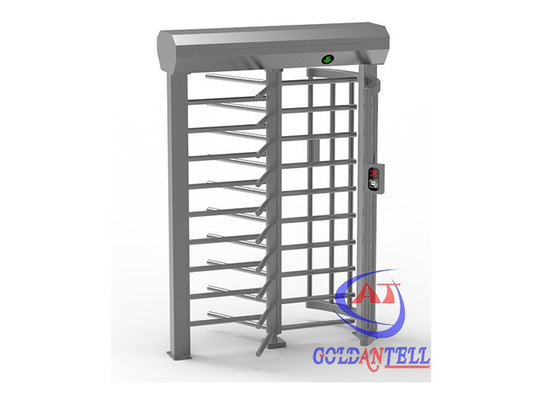

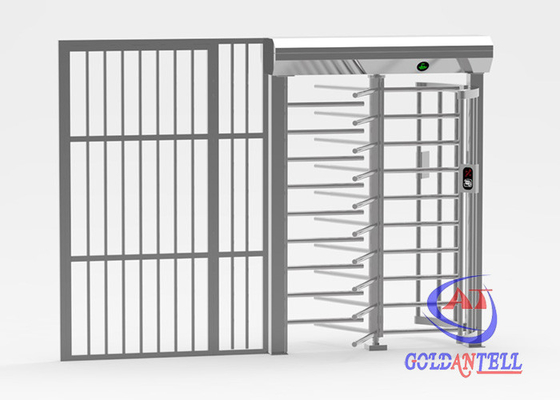

RFID & 2D readers stainless steel single passage full turnstile with 1.1 mts wide magnetic lock bypass door
Descriptions:
Goldantell full height turnstile is s a high tech product which mainly provides intelligent management to passageway.
1. Features: This full height turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Very comfortable space for passage.
2. Functions: Prevent illegal in and out.Arms off in emergency case. This product is finely processed with complete functions and high level.
3. Application: suitable for stadium,prison,office building, government, Confidentiality center,etc.,
4. System Integration: this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and
management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment...
5. Classified into two kinds: single-access;dual-access.
Product details show:
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin-operation, access control system like card reader, fingerprint reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Specifications:
|
Technical parameters |
|
| Housing material |
domestic standard 304# stainless steel |
| Size |
3100*1400*2250mm (MM) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Roof Dimensions : | Φ1500MM |
| Reset time after break down: | 10 seconds |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Time to work after power on: |
3 seconds |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
The Layout Details
Packing details show:
1. Crate package
A. 1 pc double access full height turnstile: with 4 pieces of package, about 9 m³.
B. 1 pc single access full height turnstile: with 3 pieces of package, about 7 m³.
2. Closed wooden case
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
