8 Inch LCD Display Esd Equipment With RFID Reader Wristaband and Foot Pedal
Technology Parameter Of Goldantell Esd Equipment:
| 1 |
Instrument Dimensions |
8 inch LCD Display:
display all info of users, like photo, name, card ID,depart, entry time,etc.
|
| 2 |
pedal size |
(W) 400mmx (L) 420mmx (H) 20mm |
| 3 |
Operating voltage |
input AC220V output DC12V |
| 4 |
Working hours |
unlimited |
| 5 |
Environmental conditions |
Humidity: 0%~90%, Temperature: 5C°~ 40°C |
| 6 |
Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more. |
| 7 |
Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.) |
|
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
|
ESD Equipment Features:
It can be used to save data online, with signal output, 8 inch display monitor, included related software, tester and voice prompts (additional), and employee card access control.
1. ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.
2. Just install SQL Server2000/2008 and run the access control management software system on any computer in your
company.
3. Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types). To monitor employees' compliance with anti-static requirements in real time.

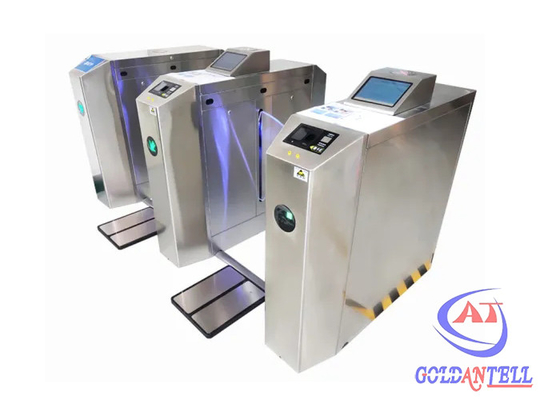

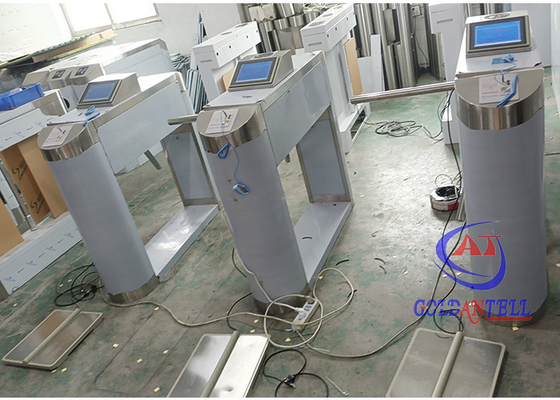

ESD Equipment install in turnstile gate
ESD Equipment Working mode Instruction:
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly
contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Package:inside carton,outside crate package or closed wooden package
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Goldantell.
- Q: What is the model number of this product?
A: The model number of this product is GAT-ESD305
- Q: Where is this product manufactured?
A: This product is manufactured in Guangdong, China.
- Q: Does this product have any certifications?
A: Yes, this product has CE, ISO9001, Form E, Form F, and CO certifications.
- Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
- Q: What is the price range for this product?
A: The price for this product ranges from1300 to 1480USD.
- Q: How is this product packaged?
A: This product is packaged in closed wooden package.
- Q: How long does it take to receive this product?
A: The delivery time for this product is 7-12 working days.
- Q: What are the accepted payment methods for this product?
A: The accepted payment methods for this product are TT, Western Union, and L/C.
- Q: What is the supply ability for this product?
A: The supply ability for this product is 400-500 sets per month.
