Mechanism Access Control Turnstile Tripod Turnstile Gate Barcode Reader Entrance And Exit
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-303 |
| Document | Datasheet & Project Profile...05.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200mm (L) * 280mm (W) * 1000mm (H) | Compatible | ESD Testing System |
|---|---|---|---|
| Communication Port | RS485 ,TCP/IP | Application | Pulic Toilelt, Park, Office Building, Club, Etc. |
| Net Weight | 45KG | Gross Weight | 50KG |
| Product Name | Esd Testing Turnstile | Material | 304 Stainless Steel |
| Highlight | tripod barrier gate,fare collection system |
||
Product Description
Enterprise Entrance and Exit mechanism pedestrian access control barcode reader tripod turnstile

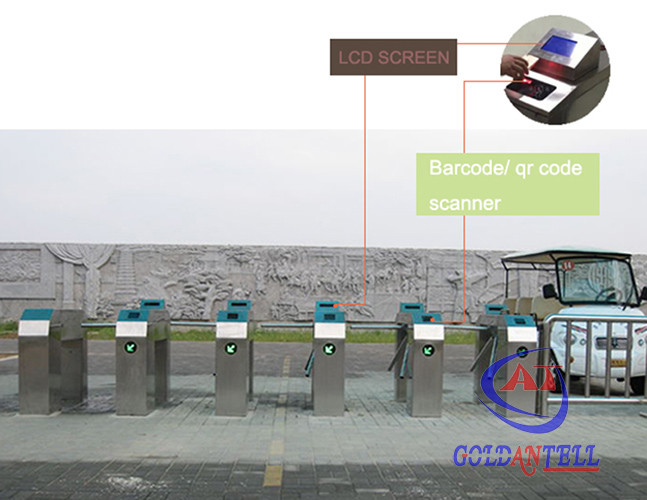

Application Projects
Spanish canime
SA building entrance
China famous scenic spots
amusement park
Subway Station
Tourism Sports
Enterprise’s Entrance and Exit
Specification
| Turnstile Size |
120 * 28 * 100 CM |
| Working voltage | AC220±10%V 50±10%HZ |
| Arm width: | 510 mm |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Housing material |
domestic standard 304# stainless steel |
| Input interface: |
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| LCD display screen: | optional |
Click this link to check out the testing video of the QR/ bar code tripod turnstile :
http://v.youku.com/v_show/id_XMTMxMzQ2NzE3Mg==.html?from=s1.8-1-1.2
if you would like to develop the barcode control system software by your side, we can first provide the SDK of controller to support your business before you place an order to us.

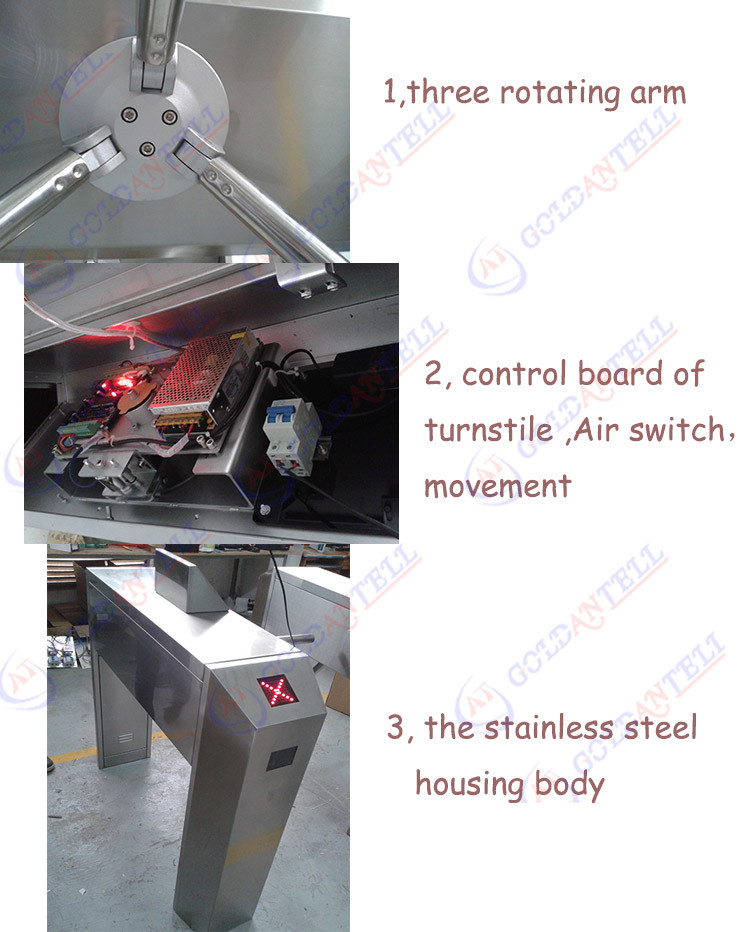

Function & Features
Standard features
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
Package & Shipping
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
FAQ
Q:1. Can you install RFID card reader on the turnstile?
A: Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd system,etc.
Q:2. How about the guarantee and after sale service?
A: We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
Q:3. How long is the leading time?
A: For standard item
10-50 sets:5 working days50-100 sets:7-10 working days
200-500 sets:10-15 working days
B: For special item, or need custom design package or logo, need 3-10 working days longer
Q:4. What is the payment terms?
A: TT,western union,L/C, Paypal, etc. our company already joined the trade assurance,it will highly protect your order security.
Q:5. How do you send the product to me,how long?
A: For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
Q:6. Can you do OEM service?
We offer below OEM services:
1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
