High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System

  • High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System
  • High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System
  • High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System
  • High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-218
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 Stainless Steel/316 Stainless Steel Size Of Product 1200/1400*300*1005mm
Net Weight 80KGS/PC Gross Weight 90KGS/PC
Communication Port RS485 ,TCP/IP Application Indoor&outdoor
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Product Name Flap Turnstile Barrier Gate
Custom Customer Logo , Customer Design
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description



High Speed Glass Lane Flap Barrier Gate With TCP / IP Door Access Control



System


Flap Turnstile Barrier Gate  Specifications:



Name
Flap Barrier / Flap Turnstile

Transmission
Sine Linkage
Model No.
GAT-218

Frenquency
50-60Hz
Housing Size

1200/1400*280*990mm


Control type
IC/ID / Barcode control / Bimetric accepted

Housing Material
304 grade stainless steel optional

Max Channel Width
600mm
Passing speed
30 person/min

Logic voltage
24v
Working voltage

 AC220V±10V, 50HZ


Direction
Single or Bi-directional
Motor voltage
220V

Operating humidity
≤90% non-condensing
Rated Power
80w

Operation life
≥5 million times
Working temperature
-45°C--+80°C

Net Weight
80kg
Communication Interface
RS485/RS232
Gross Weight
90kg




Flap Turnstile Barrier Gate  Function & Featuers:


1 . Close and open by remote control

2 . Failure detection and alarm functions;

3 . Flow direction guide with high bright led lamp

4 . Normal close or normal open (for group pass)

5 . Can be integrated with all kinds of access control systems,

6 . Anti-punch, the barrier will not close if it detects people inside the passageway

7 . Anti-tailgating, it allows only one person to pass for an authorized card presented.

8 . Anti-panic, when power off, the barrier will open for people to go through.

9 . Bidirectional control, by authorized card or biometric identifications, push button and so on

10 . Card reading memory function, the user can set multiple time card reading passing or single time

11 . nstalled in indoor or outdoor

12 . Multi-working mode----Forbidden, Controlled or Free Passing optional

13 . Easily integrated with any type of readers---such as magnetic card, barcode card, RFID card and so on.

14 . Card-swiping memory function

15 . Always open or close mode. In an emergency, the passage will be freely pass automatically

16 . Bi-directional passing or single way passing.

17 . LED Counter, Direction indicator.

18 . Infrared detector to sense the passing status.

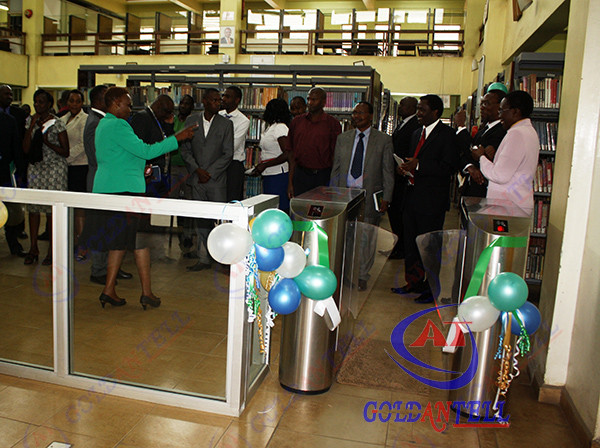

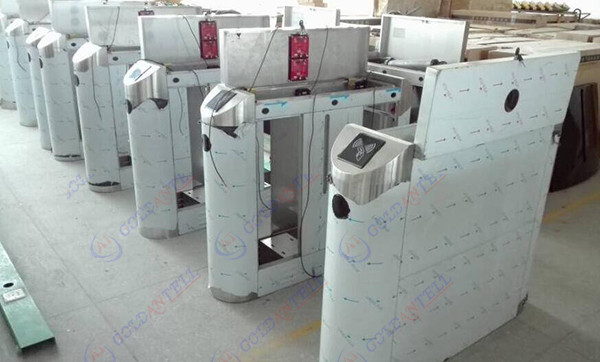

Flap Turnstile Barrier Gate Picture & Package:


High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System 0
High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System 1

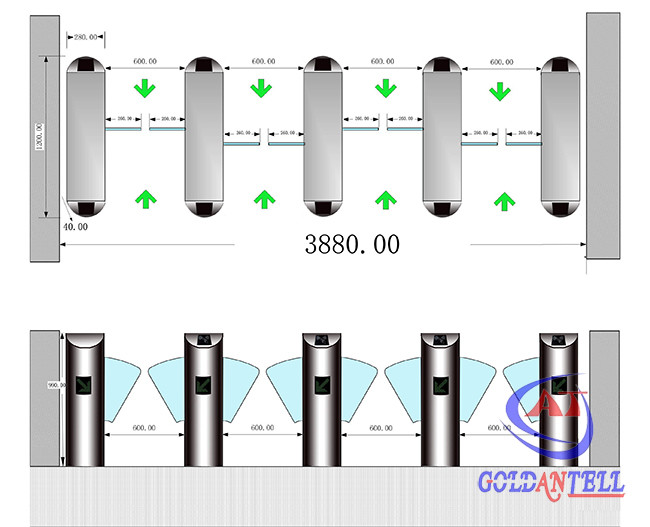

Flap Turnstile Barrier Gate Design Picture:



High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System 2



Why choose us:



1. Our Factory has 14 years OEM/ODM experiences in the line of access control turnstile and barrier.



2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.



3. We accept OEM/ODM orders to meet the requirements of clients.



4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.



5. Online technical support makes it carefree to be our business partner.



6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.



7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
