Entrance Swing Barrier Gate With RFID Card Reader And Software Management

Name

Bridge type swing turnstile

Item number

GAT-A601-1( single motor)

GAT-A601-2 (double motors)

Goldantell Product Brief Introduction

Goldantell swing turnstile is a high-tech product which mainly provides intelligent management to

passageway.This product is finely processed with complete functions and high level, suitable for high-level

neighborhoods, intelligent buildings, hotel, subway, port and club,etc.


This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification,

provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar

code and fingerprint. It can carry out intelligent control and management to the passageway through

choosing various identification equipments and adopting fair, reliable security protection, alarming

equipment and direction indicating equipments.

Classified into two kinds: single motor (suitable for single passageway and multiple passageway.)；

Double motors (suitable for multiple passageways)

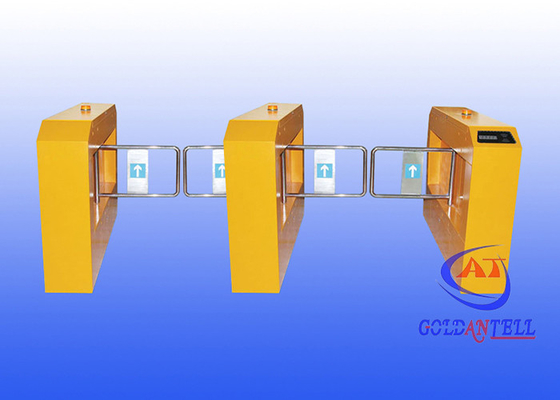

Goldanell Product Picture

Technical parameters

Housing material: domestic standard 304#

stainless steel

Working voltage: AC220±10%V

50±10%HZ

Driving motor: DC24V brush motor

Size: 1200mm (L) *280mm (W) *1000mm (H)

Passage width: 530-830mm

Swing arm angle: 180 degree

Direction: single or bi-directional (optional)

Working environment: indoor/outdoor (with

a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Time of opening/closing: 1 second

Pass speed: 40 persons/min (open), 25-30

persons/min (closed)

Time to work after power on: 3 seconds

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485

interface, distance ≤1200m

Input interface: +12V level signal or pulse

width>100ms 12V pulse, drive

current>10mA
