Product Details:
Payment & Shipping Terms:
|
Product Name: | 304 SUS Flap Turnstile | Size Of Product: | 1200*280*1000mm |
---|---|---|---|
Package Size: | 1280*370*1070mm | Application: | Indoor&outdoor |
Net Weight: | 65KG | Gross Weight: | 70KG |
Communication Port: | RS485 ,TCP/IP | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Material: | 304 Stainless Steel/316 Stainless Steel | ||
High Light: | automatic systems turnstiles,304 SUS automatic turnstiles,Speedlanes |
304 SUS Automatic Systems Turnstiles Speedlanes With Barcode Reader Identification
Led custom size automatic systems turnstiles speed lane with Barcode Reader Identification
Description
1. Flap barrier series is widely used in airports, subway stations, and railway stations , docks, scenic spots, parks, student dormitories, pedestrian passages, etc.
2. It can be compatible with Face, thermal, RFID / fingerprint / QR or barcode / ESD access control system, to manage.
3. LED indicator light: green and red indicate the passing information.
4. Single lane or multiple lane set-up
5. Special stretch wing design, save closing time, improve the passage speed, prevent trailing , increase the security level.
Specifications
Item |
( single motor ), OR ( double motors ) |
Name |
Bridge type flap turnstile |
Size: |
1200mm (L) * 300mm (W) * 1000mm (H) |
Retractable arm length: |
260 mm |
Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
Passage width: | ≤600mm |
Normal running life: | 3 million |
Time of opening/closing: | 0.6 second |
Time to work after power on: |
3 seconds |
Reset time after break down: |
10 seconds |
Direction: | single or bi-directional (optional) |
Drive motor: | DC 24 V brush motor |
Working environment: |
indoor/outdoor (with a tent over) -10℃~70℃ |
Communication interface: |
standard RS 485 interface, distance ≤1200m |
Input interface: |
+12V level signal or pulse width>100 ms |
Relative humidity: | ≤90% coagulation free |
Housing material: |
domestic standard 304 # stainless steel |
Working voltage: | AC220±10%V 50±10%HZ |
Function& features
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
3. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by managing the computer.
7. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Special function
1. LED counting function
2. Box house can lengthen, swing arm lengthen
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function
4. Normally open or closed can be adjust to meet the requirements of the different place. Sound and light alarm prompt functions
5. Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately.

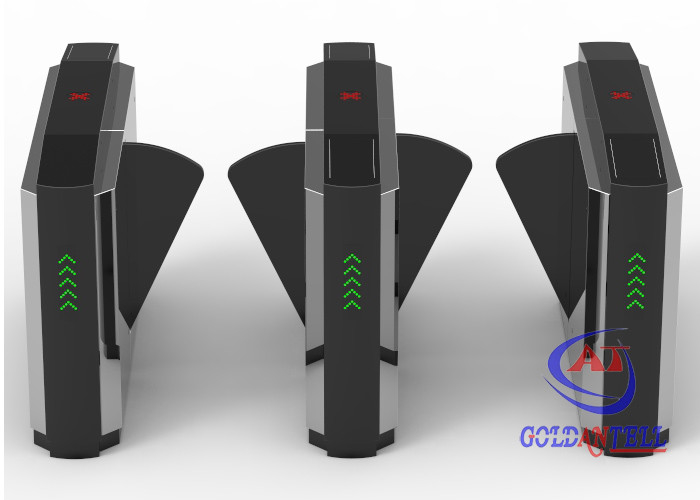

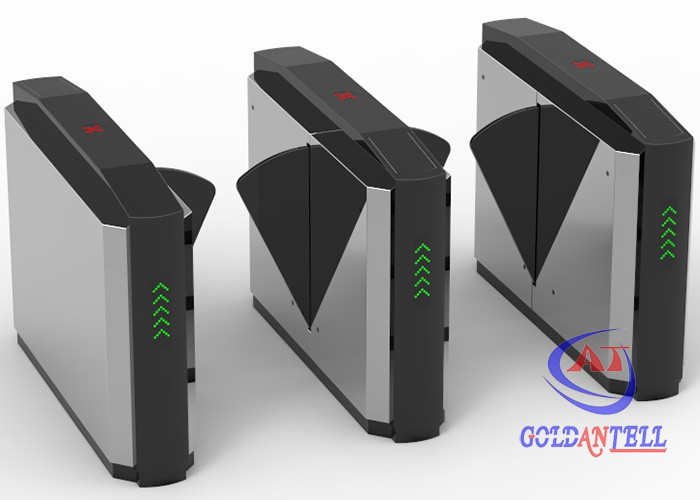

Product Photos
Project Example
FAQ
1) How about your package?
Vivian: Seaworthy wooden case + Foam.
2) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
3) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
Competitive Advantage
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
Access Control Ways
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
