Product Details:
Payment & Shipping Terms:
|
| Dimension: | L1200xW280xH1000mm | Passage Width: | 600mm |
|---|---|---|---|
| Power Supply: | AC220V/110V,50/60Hz | Warranty: | One Year |
| Working Environment: | Indoor / Outdoor ( Shelter) | Communication Interface: | RS485/IP/TCP |
| Material: | 304 Stainless Steel | Direction: | One Or Bi-direction(optional) |
| High Light: | SUS304 Flap Barrier Gate,Fitness Center Flap Barrier Gate,Fitness Center flap gate barrier |
||
DC brushless motor automatic flap gate popular turnstile price face fingerprint code recognition for fitness enter
Descriptions
1. Flap Barrier systems provide effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.
2. Turnstile opens when power failures: When power is off, the wing gate turnstile will open automatically so as to evacuate people in the event of emergencies.
3. Flap barrier will auto alarm and red light when unauthorized person gets in.
4. There are LED light and indicator passing direction.
5. Anti-rush function, Anti-Reverse, anti-intrusion, anti-follow.
More Specification
| Power | AC100-240V,50/60HZ |
| Passage width | 600 mm, can be custom-made into 900mm |
| Operating temperature | -15°C--75°C |
| Relative Humidity | ≤95%, No Condensation |
| Communication Distance | ≤1200m |
| Passing Speed | 25~30 persons/min(IC Card/ID Card...) |
| Motor | 0.5NM/24V(Fully Automatic) |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| Communication Connection | RS485 Communication Module Standard. |
| Material | SUS304 or Carbon Steel Powder Coating |
| Direction | single or bi-directional (optional) |
| Time of opening | 1-2 second |
Functions & features
A) To adjust the operation speed of the barrier according to the flow of passengers and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.

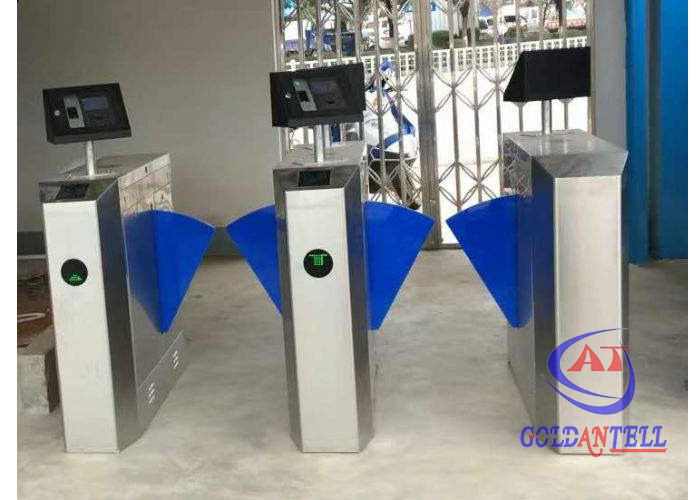

Product Photo
Details Introduction
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin- operation, access control system like card reader, etc.)
3. Material: standard 304 stainless steel (optional, 316).
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mold design, save your money!
4. We Timely Response every customer! Response to customers who did business with us in 3mins, and assist with project solutions later.
