Product Details:
Payment & Shipping Terms:
|
| Type: | Single Core Or (double Core For Multi Lanes) | Direction: | Bi-direction Adjustable |
|---|---|---|---|
| Working Environment: | -10-75℃ | Usage: | Office,Library,Metro Station |
| Application: | Indoor & Outdoor | Power Supply: | AC220V/110V |
| Package Size: | 1310*410*1110mm | Communication Port: | RS485 ,TCP/IP |
| High Light: | Gym Turnstile,Turnstile With Face Recognition,fingerprint turnstile |
||

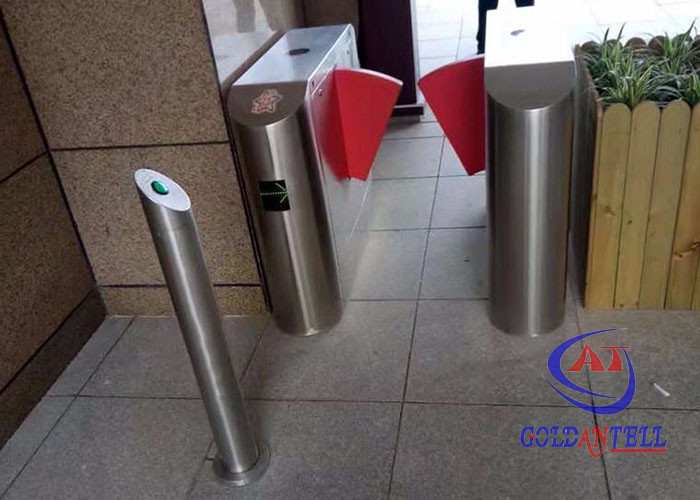

Access Control Push Button Gym Turnstile With Face Recognition RFID Fingerprint
Description
1. Flap barrier gate, also called wing gate is one of the passage management equipment, mainly used for pedestrian passage management
2. It has the characteristics of a fast opening, safety, and convenience, and is an ideal managing and channeling device for high-frequency pedestrian access.
3. Type: single motor (suitable for single passageways and multiple passageways.); Double motors (suitable for multiple passageways).
4. Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
5. It supports a variety of access control ways like a push button, biometric recognition, remote controller, the third part reading pole, etc.
Specifications
| Item | GAT-218-1( single motor ); GAT-218-2( double motors ) |
| Name |
Bridge type sharp arc flap turnstile Item |
| Technical parameters | |
| Housing material: | domestic standard 304# stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
| Size: | 1200/1400mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length: | 285 mm |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | ≤600mm |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC24V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100ms |
| Relative humidity: | ≤90% coagulation free |
Special function
1. Normal open and normal close can be controlled by an external button. (for group pass)
2. Gate auto-open when power is off to meet the fire protection requirements.
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function.
4. Box house can lengthen, the retractable arm can lengthen according to different projects requirements.
5. Triple anti-clamping: With triple anti-clamping such as infrared anti-clamping, mechanical anti-clamping, and anti-collision by advanced electric current detection, turnstile can protect personal safety of passengers more comprehensively.
6. Industrial PC flap,it's very strong and never broken.
Application
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls,Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings. |
| Entertainment Places | Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,Fitness Gym |
| Business Organizations | Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |
Projects show
1) single passage or multiple passages suit your situation.
2) the color of retractable wings can be optional of standard Blue, Red, Black, Transparent (combined with optional colorful led lighting),etc.
3) two-way access with RFID card, or fingerprint, Barcode scanner, ESD tester or more readers in request.
Package
1. One pair need two packages.
2. With access control system, need the closed wooden box packing.
3. Without the access control system, two ways for your choice: crate and closed wooden box.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
