Product Details:
Payment & Shipping Terms:
|
| Gross Weight: | 56KG | Product Name: | Foldable Boom Barrier Gate |
|---|---|---|---|
| Rod Type: | Straight/ Foldable/ Connenting / Extendable Rod | Size Of Product: | 340*280*1030 |
| Package Size: | 420*360*1100mm | Type: | Straight Arm Barrier Gate |
| Power Supply: | AC220V±10%50HZ AC110V±10%50HZ/60HZ | Rail Length: | 1- 6 Meter |
| Material: | Cold Rolled Mild Steel/stainless Steel | ||
| High Light: | vehicle barrier gates,car park boom gates |
||

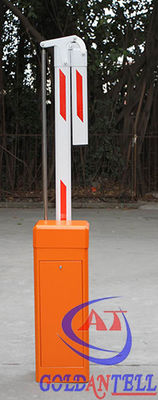

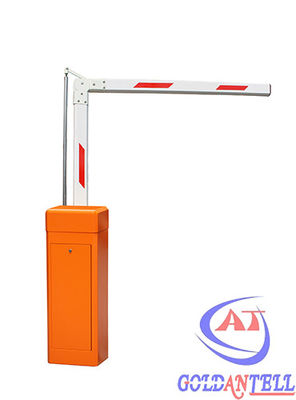

Foldable Pole Remote Control Parking Boom Gate Working at 220 / 110 Voltage , Rail Speed 3 - 6 Second
Description:
1. Characteristics: Special movement mechanism, with no gear or belt; no need for maintenance; stable
performance and long life- span. Only 90 degree running for the boom, to avoid the accident of 360
degree running caused by abnormal failures.
2. Main functions: This equipment is controlled in wireless method, which makes its operation safe &
convenient. What you need to do is to connect the equipment with 220 V power supply and earth the
exterior case; then the system could start working without any wire arrangement or matching.
Specification:
| Rail material | Aluminum Alloy |
| Housing box material | cold rolled mild steel/stainless steel |
| size | 344*284*1050 MM |
| Rail length | 1- 6 meter |
| Motor speed | 30 r/min |
| Control ways |
push button/remote control/access control system like charging system or RFID card reader |
| Housing color | orange / blue/ yellow / red |
| MCBF | ≥5,000,000 times |
| Working environments | indoor, outdoor |
| Working temperature | -40℃～85℃ |
| Relative humidity | ≤90% no condensing |
| Power supply |
AC220V±10%50 HZ AC110V±10%50 HZ/60 HZ |
| Rated power | 70 W/150 W |
| Traffic light | optional |
| Bumping bounce back | N/A |
Use & operation safety notes:
1. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with
220V power supply.
2. The power supply system should be equipped with leakage breaker (≥10A).
3. During arm going down, do not place anything under the booms; and no body is allowed to standing or
walking under the boom.
4. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.
5. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by
turning the manual swing manually.
6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If
necessary, professional staff is required.
7. During running, do not open the case-cover or case-door, to avoid accident.
Standard functions & features:
1. Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid damaging easily during frequent usage.
2. Special movement mechanism, with no gear or belt; no need for maintenance;stable performance and long life-span.
3. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal failures.
4. This equipment is controlled in wireless method, which makes its operation safe & convenient. What you need to do is to connect the equipment with 220 V power supply and earth the exterior case; then the system could start working without any wire arrangement or matching.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
7. Avoid vibrating caused by boom’s running.
8. The gate is equipped with multiple communication interfaces. It could be connected with vehicle-detector, IR co-irradiator or other accessories, to meet the safety requirement; and charging system could also be connected to realize automatic management (optional).
Project schemes:
1. Except the product, also offer the RFID card reader control system.
2. Only the boom barrier gate, you can use the button or remote controller to control it.
3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle
detector, Entrance control system main board, System special switching power supply, parking lot system
management software with dongle , etc.
Competitive Advantage:
1. All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.
7. Friendly and professional customer service people help you in 16 hours.
Characteristics:
1. Avoid vibrating caused by boom’s running;
2. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
3. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span.
4. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and avoid
damaging easily during frequent usage.
