Product Details:
Payment & Shipping Terms:
|
| Power: | AC220C/380V | Application: | Entrance Of The Hotel, Buildings, Main Street ,etc. |
|---|---|---|---|
| Operating Temperature: | -10°C~65°C | Up Or Down Time: | 3 To 6 Seconds(can Be Adjustable) |
| Protection Grade: | IP68 | Material: | A3 Steel,anti- Rust Paint |
| Communication Distance: | ≤1200m | Communication Port: | RS485 ,TCP/IP |
| System Power:: | 1.5KW/2.2KW/3.7KW/5.5kw(heavy Duty) | ||
| High Light: | vehicle barrier gates,retractable barrier gate |
||

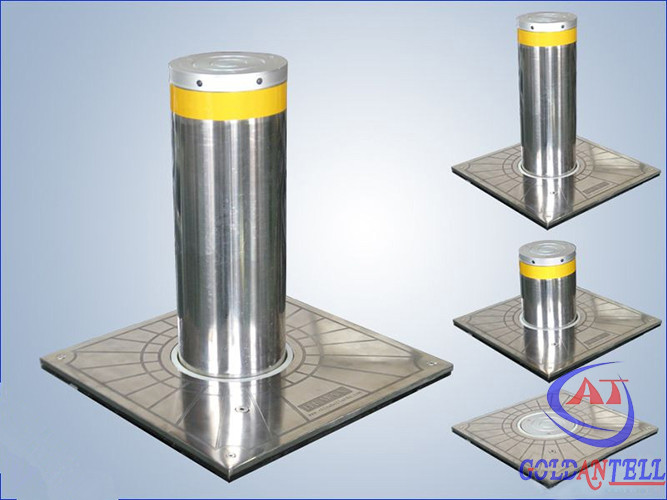

Custom Size Automatic Remote Hydraulic Security Road Blocker, Stainless Steel Safety Parking Blocker
Description:
1. The Duty issue commands through the control system, hydraulic transmission device make the
roadblocks. rise and fall quickly, after the vehicle pass, through the inductor to detect device automatically,
or manual operate the button to make the roadblocks movements;in order to effectively prevent the vehicle
force pass, the Duty need to control the lane, open or close the door.
2. The product uses the hydraulic drive technology and mandatory blocking, with load- bearing, anti- collision
capability, simple operate, flexible, hydraulic drive,smooth motion, fast, low noise, high capacity, secure and reliable, strong bearing capacity, smooth movements functions and so on.
3. Road blocker can be used with barrier gates, smart card and attendance management systems,
which supporting the composition. (According to user requests for additional)
Specifications:
| Product specification | |
| Power supply | AC 110 V ~ 240 V 50 Hz |
| Storage Environment | -40 ℃ ~ 75 ℃, rain and moisture and dust |
| Color |
stainless steel color, multiple colors or adding reflective tape LED (optional) |
| Material |
304 stainless steel, 316 stainless steel, carbon steel electrophoresis optional spray paint |

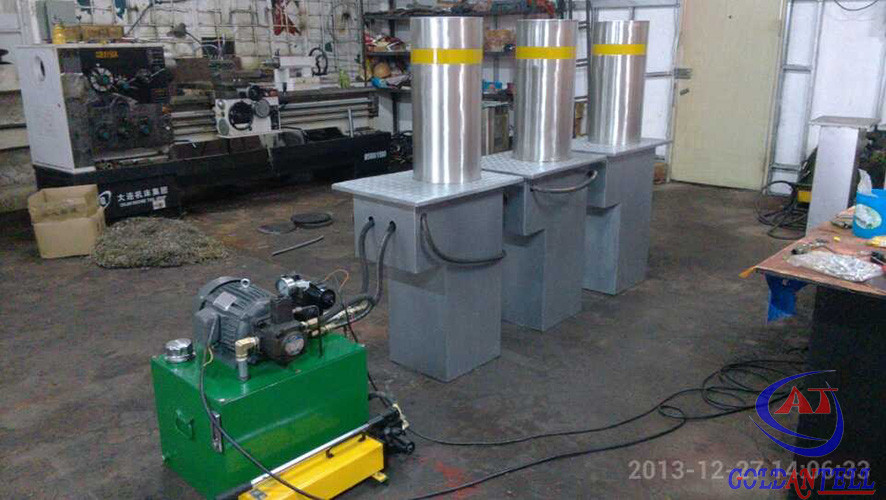

| Parts of Blockers |
1,Blocker Body
2,Automatic Control Board 3,Hydraulic Pressure Integration |
| Dia.of blockers |
168 mm ±2mm 219 mm ±2mm 275 mm ±2mm |
| Communication Distance | ≤1200M |
| Thickness size | thickness can be customized 6-12 mm |
| Communication Connection | RS 485 interface |
| Weight | ± 100-150 kg |
| Control(optional) |
remote control, manual, card, license plate recognition and access control linkage, remote control |
| Applications |
Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
| System Dynamic Power(w) | 2.2KW / 380 V |
| Rising Time | 2 ~ 4S (adjustable) |
| Falling Time | 2 ~ 4S (adjustable) |
Feature and function:
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down.
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems.
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control.
4. Advanced mature Hydraulic pressure technologies.
5. Remote control system realize wireless control up&down within 30 meters range.
6. Customized for different users requests.
7. Controller display : LCD and LED.
8. Swiping card system: built-in card reader to control bollards up&down.
9 .Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card.
10. Connected with Computer Management OR Charging Systems.
Especially, Roadblocks can be used with barrier gates, smart card and attendance management systems,
which supporting the composition. (According to user requests for additional)
Classification:
According to the control ways,divided into main three different kinds.
1. Hydraulic road blocker: with hydraulic control system.
2. Electric road blocker: with electric driven control system,including full automatic& semi-automatic control ways.
3. Manual control;
Application:
Road blocker are widely used in highway toll stations, checkpoints, prisons, airports, government, embassies, military bases, customs, bank, industrial and mining enterprises, ports, warehouses, parking lots and anywhere need to limit vehicle pass, etc.
Package:
|
1 road blocker needs 2 wooden packages and 2 crates. |
|
|
|
