Product Details:
Payment & Shipping Terms:
|
| Power Supply: | DC12V | Application: | Office/ Building/Factory Access Control,School |
|---|---|---|---|
| Function: | QR Code Module | Weight: | 0.8kg |
| Face Detection: | 20 Thousand Local Face Database | Application Mode: | Gate, Wall-mounted, Desktop, Floor-mounted Installation |
| Wiegand / RS23: | Wiegand Format 26/34, RS232 | Warranty: | 1 Year |
| High Light: | QR Code Fingerprint Attendance Machine,DC12V Fingerprint Attendance Machine,DC12V Face Recognition Temperature Scanner |
||
Technical specification
| 1 | Body dimension | 234*125*24.5mm |
| 2 | Screen size | 8 inches, full viewing angle IPS LCD screen |
| 3 | CPU | 4-core RK3288/3399 |
| 4 | memory | RAM DDR3 2GB+Local storage TF card 8GB |
| 5 | serial port | 2x RS232 interfaces, 1x 485/1 Wiegand input, 1x Wiegand output |
| 6 | Respond speed | fastest 0.2s |
| 7 | network | supports wired, 2.4Gwifi, 4G network card |
| 8 | relay control module | 1 output |
| 9 | USB | USB2.0 micro 2 way |
| 10 | RFID card reader | optional |
| 11 | QR code scanner |
optional ( need second development with our SDK, or customize for you.) |
Features & Functions
1. A PC can control multiple face recognition devices;
2, real-time view of each device control access personnel access information.
3, using 200W high-performance high-definition wide dynamic camera module;
4. The single-chip microcomputer is used to control the light-sensing module to solve the problem of the bounce of the critical point of light;
5. Configure the gate and access control module to directly control the linkage equipment;
6, can use the local area network to send black and white list to the face recognition terminal equipment;

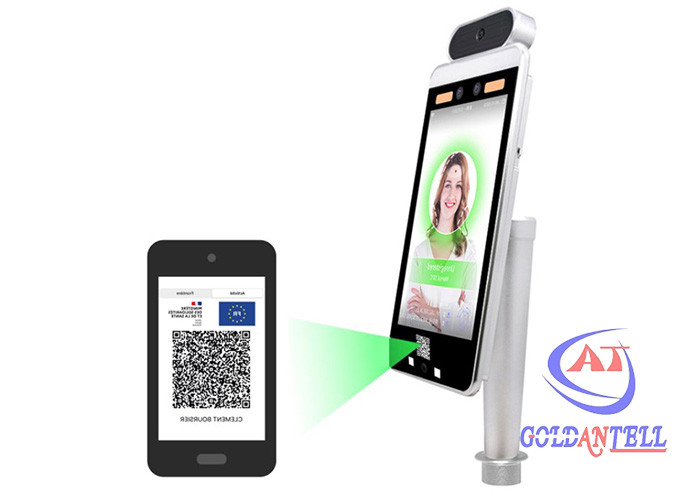

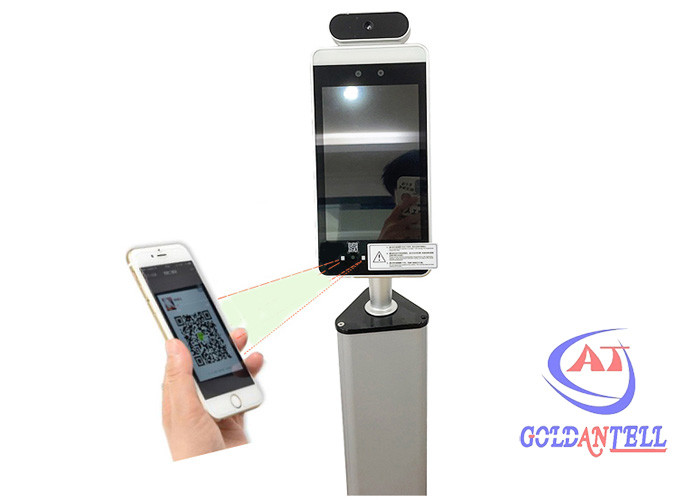

Product Display
FAQ
Q1. Does this product support other language operation systems?
A1: sure, no problem.
Product Installation
1. For Desktop (ref to Product display)
The nut needs to be removed, the tail wire is passed through the stainless steel bracket and the nut in sequence, and the angle is tightly tightened; it is suitable for program debugging.
2. For Turnstile Gate (ref to Product display)
We can attach it on the top of turnstile gate, or fix in extra pillar as another option reference.
Product Application
