Product Details:
Payment & Shipping Terms:
|
| Face Capacity: | 400 (1:N) | Fingerprint Capacity: | 2000 |
|---|---|---|---|
| Logs Capacity: | 100,000 | Box Material: | Plactic |
| Networking Way: | TCP/IP Port, RS485 Network Communications | Size: | 193.6*146.8*111 Mm (Length*Width*Thickness) |
| Gross Weight: | 1.9kg | Type: | Face Recognition Time Attendance |
| Output: | Relay Signal | ||
| High Light: | fingerprint attendance system,fingerprint attendance machine |
||

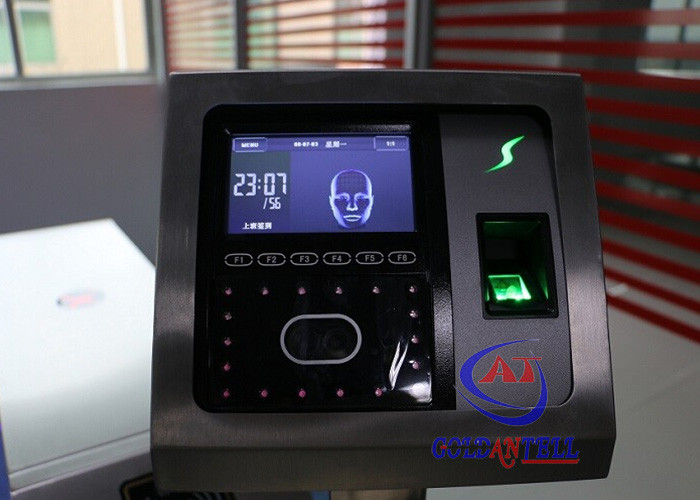

Face And Fingerprint Attendance Machine , Turnstile System With Face /
Fingerprint Free Software And SDK
Face And Fingerprint Attendance Machine Main Specification:
|
CPU |
ZK Multi-Bio CPU 630 MHz
|
|
Memory |
256M Flash, 64M SDRAM
|
|
Hardware Platform |
ZEM600 Multi-Medium Development Platform
|
|
Fingerprint Sensor |
ZK Optical Fingerprint Sensor without film
|
|
Camera |
High Resolution Infrared Camera
|
|
Display |
4.3 inch TFT touch screen
|
|
Face capacity |
400 (1:N)
|
|
Fingerprint capacity |
2000
|
|
Logs capacity |
100,000
|
|
Algorithm Version |
GAT Face 7.0 & ZK Finger 10.0
|
|
2000mAh backup battery |
Optional
|
|
Communication |
TCP/IP,RS232/485
|
|
USB-HOST |
Two USB-Host
|
|
Wireless Wi-Fi |
Optional
|
|
Time attendance Standard functions |
Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST
|
|

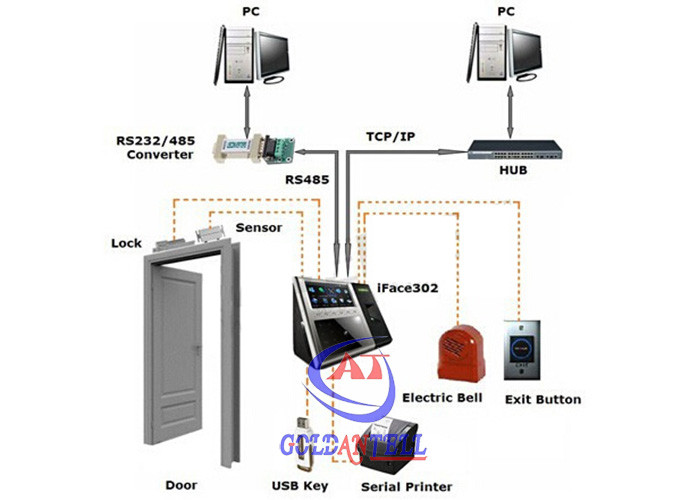

Access control interfaces for |
3rd party electric lock, door sensor, exit button
|
|
Wiegand Signal |
Output
|
|
Optional functions |
serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
|
|
Power supply |
12V3A
|
|
Verification Speed |
|
|
Operating temp |
|
|
Operating Humidity |
20%-80%
|
|
Dimension |
193.6*146.8*111 mm (Length*Width*Thickness)
|
|
Gross Weight |
1.9 kg
|
Features
1. Reliable and DIY Biometric Fingerprint Access Control with Time Attendance, Door Access Control
System
2. F20 is Reliable and DIY Biometric Fingerprint Access Control widely used in the office. Choosing a lot of
stable original parts, strictly follow the national security product standard .
3. F20 is suitable for the entrances and exits of office, factory ,hotel ,school ,etc .
4. All input /output are using anti-jamming protection and over-voltage/circuit protection. 5.The product
experiences the strict degradation test before leaving factory, The greatest advantage of F20 is easy to
install, with multifunctional & elegant design and reasonable price.
Competitive Advantage
More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package
we can provide not only product, but also system software management.Save your time and cost.
Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
Friendly and professional customer service people help you in 16 hours.
Application
Thie RFID & Fingerprint all ine one acess control system can combine excellent with Goldantell barrier
gate.
