Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Application: | Prison, Factory, Government Etc. |
|---|---|---|---|
| Power Supply: | AC220V/110V | Size Of Product: | 1600*1500*2250mm (MM) |
| Material: | 304 Stainless Steel/316 Stainless Steel | Type: | Single Access Full Height Turnstile |
| Net Weight: | 200KG | Gross Weight: | 250KG |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port: | RS485 ,TCP/IP |
| High Light: | controlled access turnstiles,security turnstile gate |
||
Mechanical Rotating automatic door / Hand-push stainless steel waist full height turnstile stainless hand
Descriptions
Goldantell full height turnstile is s a high tech product which mainly provides intelligent management to passageway.
1. Features: This full height turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Very comfortable space for passage.
2. Functions: Prevent illegal in and out.Arms off in emergency case. This product is finely processed with complete functions and high level.
3. Application: suitable for stadium,prison,office building, government, Confidentiality center,etc.,
4. System Integration: this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment...
5. Classified into two kinds: single-access;dual-access.
Product details show
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin-operation, access control system like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Specifications
|
Technical parameters |
|
| Housing material |
domestic standard 304# stainless steel |
| Size |
1600*1500*2250mm (MM) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Roof Dimensions | Φ1500MM |
| Reset time after break down | 10 seconds |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Time to work after power on: |
3 seconds |
| Normal running life | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃ |
| Relative humidity | ≤90% coagulation free |
| Communication interface |
standard RS485 interface, distance ≤1200m |
| Input interface |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |

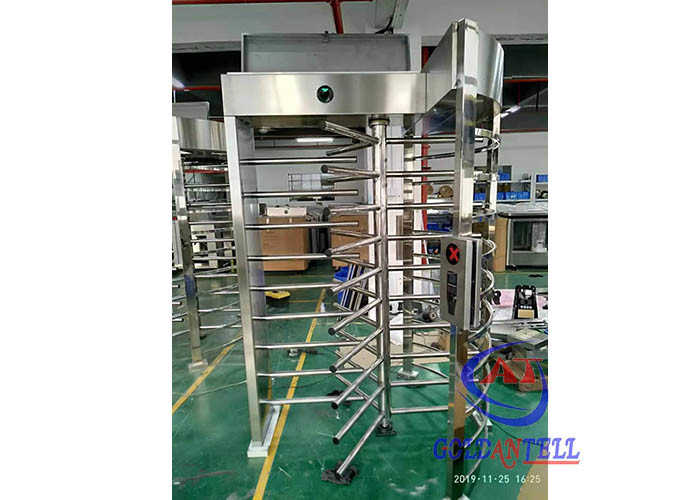

Product Photo
Our services
1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.
2. We own well-trained and passional sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.
4. We have very experienced engineers, can help you better use turnstiles.
Packing details show
Crate package
A. 1 pc double access full height turnstile: with 4 pieces of package, about 9 m³.
B. 1 pc single access full height turnstile: with 3 pieces of package, about 7 m³.
