Product Details:
Payment & Shipping Terms:
|
Size: | 2450 (L) * 1500 (W) * 2300 (H) Mm ,can Be Custom Size | Material: | 304 Stainless Steel |
---|---|---|---|
Product Name: | Construction Site Full Height Turnstiles | Net Weight: | 380KG |
Gross Weight: | 420KG | Passage: | Bi-directional |
Color: | Silvery Or Baked Black Color | Package: | 4 Packages,7CBM |
Volgate: | 220V/110V | Name: | Automatic Full Height Turnstile |
High Light: | controlled access turnstiles,security turnstile gate |

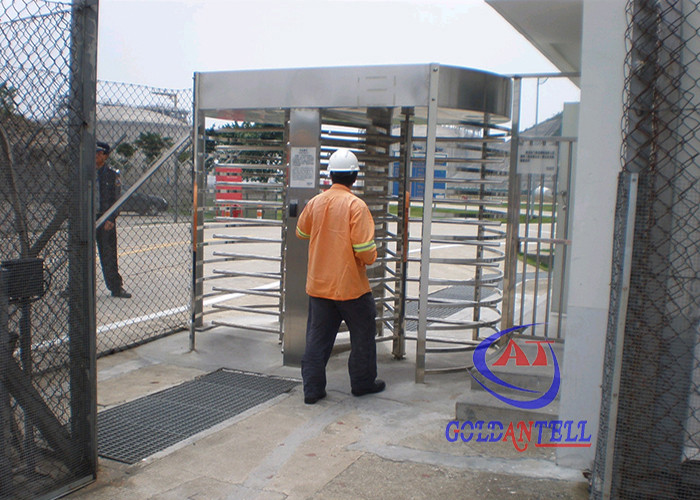

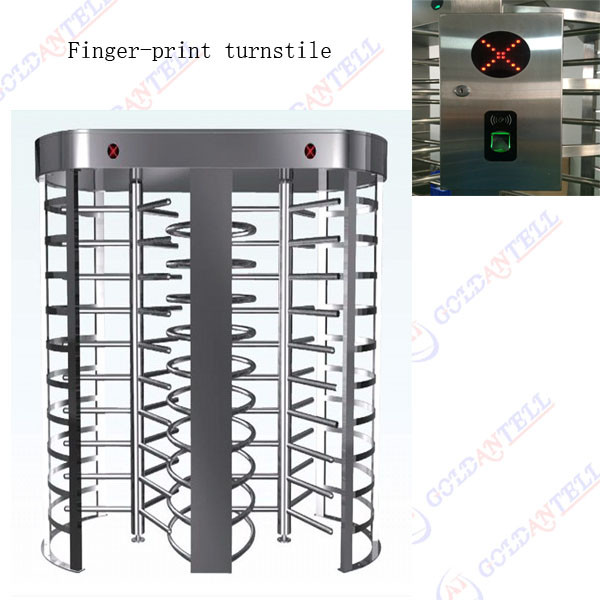

Prison / Stadium / Bank / Construction Site Mifare Card Automatic Full
Height Turnstile IP62 Reader Box
Technical parameters of contruction site full height turnstile
1, The Power:AC220V±20%V,50Hz
2, Working Temperature:-40℃--70℃
3, Relative Humidity:0-95%
4, Passing Speed:30 persons/min
5, Driving Motor: DC24V
6, Led Indicator:2
7, Communication Interface: Rs485(Distance less than 1200m)
8, Framework Material: 304 or 316 stainless steel
9, Working environment: indoor/ outdoor
10, Service Life:3.8-4 million times
Features of construction site full height turnstile
1 Automatically low noise mechanism core equipped,highly cost-performance
2 Sense positioning ,reducing mechanical impact make lifetime longer
3 Operating efficiency,1~2 seconds open & close
4 Lowest Noise : No matter in operating or outside control ,Noise control under 30db
5 Self-checking and Alarm warning for maintain
6 Resetting :System cancel authorized pass if passenger delayed pass
7 Anti following : prevent illegal passing
8 Anti clamp :The wings will stopped during in external block .the wings reset again after default delay
9 The rotary wings will be locked automatically if the system do not receive IR signal
10 Multi-passage for variety application demands ,Cover 99% needs on earth
11 Programmable signal separate control : pass time,pass speed etc. parameters
12 RS232/RS485 interface meet all kind of communications or WIRELESS connection
13 Compatible IC/ID card ,flexible couple
14 Long-distance management through COMPUTER
15 Customize Options : LED display,Voice guide ,Warning Lamps,Indicator Lights guide, Audible &Visible
Alarm
