Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Application: | Public Toilet Entrance, Swimming Pool | Coin Diameter: | 18mm~30mm |
|---|---|---|---|
| Type: | Vertical Style Smaller Size | Coin Sample: | Availble |
| Material: | SUS#304 Stainless Steel | Power Supply: | AC220V/110V,50/60Hz |
| Arm Length: | 510mm | Net Weight: | 40kg |
| High Light: | turnstile security gates,pedestrian security gates |
||

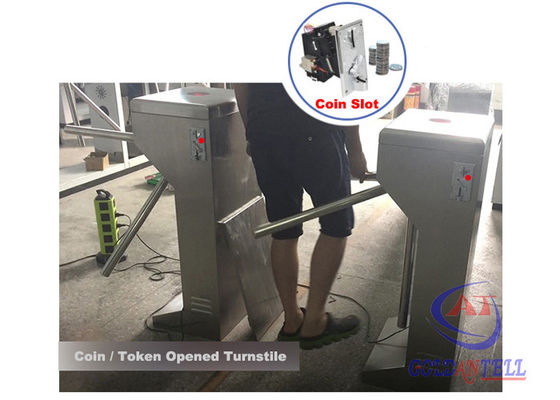

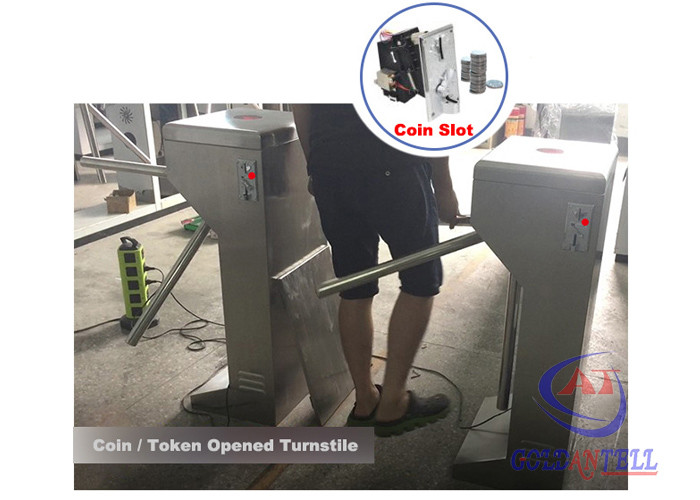

Toilet Swimming Pool Entrance Half Height Coin / Token Operated Half Height Turnstiles
Goldantell Coin / Token Operated Turnstile series is combined with Turnstiles gates and Coin machine.It's an economic solution for Public Toilet , Bus station,Swimming pool,Subway, Park, Enterprise, etc, where requires payment management for entrance / exit.
It's easy for client to operation once receipt, just need to put one piece of coin sample inside of our machine.No worried about the after-sale.
Specification of Coin/Token acceptor
Technical Parameters Of Token Machine |
Features Of Token Machine |
|
1. Coin Diameter 18mm~30mm 2. Coin thickness 1.5mm~2.6mm 3. This set system including:coin controller+stainless steel collector box 4. Operating voltage DC12V±10%; Pulse width 20ms/40ms/100ms 5. Operating current 650mA; Output mode OC. 6. Operating Temperature -15℃ ~+ 75℃ 7. Package size 455mm*340mm*272mm
|
1.Suitable for a variety of coins. 7.Wire part of the whole SMT technology, quality and stability. |
|
Specifications of Tripod Turnstile
|
|
|
Item Number
|
GAT-306
|
|
Housing material
|
standard 304# stainless steel
|
|
Size
|
420*330*1000mm
|
|
Working voltage
|
AC220/110±10%V; 50±10%HZ
|
|
Passage width
|
≤600 mm
|
|
Pass speed
|
30 persons/min
|
|
Normal running life
|
3 million
|
|
Direction
|
single or bi-directional (optional)
|
|
Emergence
|
When power off, arm open automatically
|
Functions and Functions
1. Turnstile can setting the working condition by press the button of main control board.
2. Auto-lift-arm function: for the fully auto type, the arm can lift automatically with alert when the power is on again.
3. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)
Item Display
Our turnstiles series all support to work with coin or token collector
>>More application examples of coin turnstiles doors can share FYI,please directly contact us for further support.
Goldantell Turnstile with Access Control System
1.RFID card or wristband control system；
2. Fingerprint or Fingerprint + RFID card + password control system;
3. QR code / Barcode ticket control system;
4. ESD testing control system;
5. Facial recognition control system.
