Product Details:
Payment & Shipping Terms:
|
| Direction: | Single Or Bi-directional | IP: | 54 |
|---|---|---|---|
| Material: | 304 Stainless Steel | Power Supply: | AC220V/110V |
| Passage Width: | 60cm | Passing Speed: | 30-40 Persons/min |
| Dimension: | 1400*200*1000mm | Application: | School,Office,Club,park |
| High Light: | Contactless Speed Gate Turnstile,Anti Tailing Speed Gate Turnstile,Goldantell Supermarket Entrance Turnstile |
||

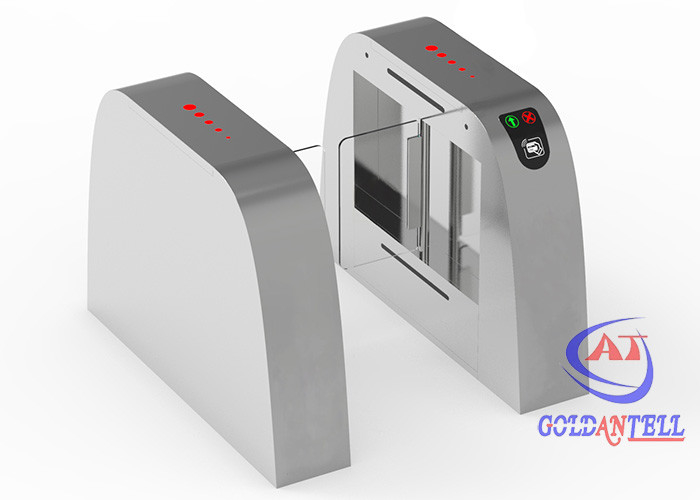

Wholesale price high-speed contactless turnstile with card system two-way Anti-tailing Swing Turnstile
—————————————————————————————
Brief Description
1) Goldantell Turnstile Barrier Series can be integrated with any third-party device like card reader, bar code scanner, LCD panel, fingerprint, and face identification device, even ESD tester device.
2) Can be widely used in stations, docks, subways, factories, buildings, intelligent communities, hotels, clubs, corporate.
3) Remote control function / anti-tailing function / fire alarm function addtional, etc.
4) With a slim design and enhanced premium hairline polish, can elevate the prestige elegant impression while still effectively restricting unauthorized visitors from your entrance.
Technical specification
| Item NO. | GAT-new |
| Cabinet dimension | 1400 (L) x 280/200 (W) x 1000 (H) mm, the size can be custom-made |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Arms opening/closing time | 0.2s |
| Passageway width | in below image: each passage is 65CM wide; can be custom-made as per client's requirement |
| Access mode | one-way or two way adjustable |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
|
Reset time after break down |
default 5s, can be changed to fit different demands |
Product Display
1. The IC/ ID/NFC card reader is installed in cabinet, like below picture.
Specially, we can provide QR code scan system in this gate if you have an need
2. Additional or custom settings:
a) visible LED lighting in glass panel.
b) slik-printing LOGO on glass.
c) LED lighting in the front of cabinet.
Functions & Functions
1. The Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several sensors to prevent turnstile closure on a person while inside the lane.
2. The Fastlane turnstile system can easily integrate with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
3. LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
4. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
Packing Details
1. inner: standard carton
2. outside: closed wooden case
Application
Airport
Lobby
commercial office building
factory
bus station
game park
colleges
banks
