Product Details:
Payment & Shipping Terms:
|
| Size: | L1200*W200*H1000mm | Passing Speed: | < 40 Person/min |
|---|---|---|---|
| Access Width: | 60,90cm, Or Longer, Can Custom-made | Material: | 304 Stainless Steel |
| Power Supply: | AC100V-240V | Operating Temperature: | -45°C-60°C |
| Driving Motor: | 24V Brush DC Motor | Type: | Fully Automatic Speed Gate |
| High Light: | Full Automatic RFID Turnstile,90CM RFID Turnstile,RFID Automatic Turnstile Gate |
||

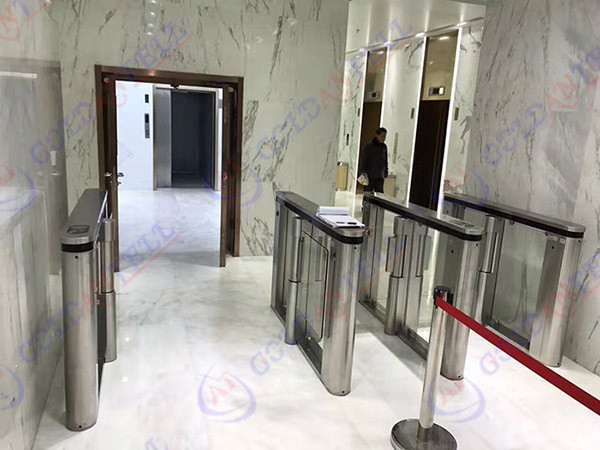

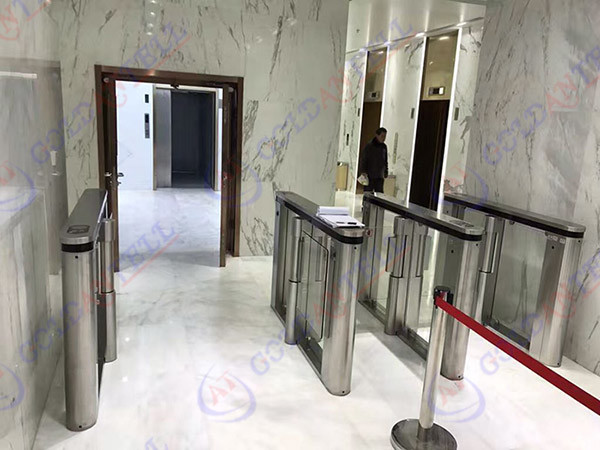

Time Attendance Full Automatic management zone turnstile 90CM wide passing for Security
Brief Description
It is a upgrade product of intelligent flap turnstile and swing barrier.It has high glass panel that prevent user from climbing over the gate to gain unauthorized access. Glass panel slides open horizontally to provide unobstructed passage way.It is finely processed with complete functions and high security level, suitable for high-level neighborhoods, commercial building, hotel, subway and club,etc.Its stylish design can easily fit into any modern contemporary building.
Technical specification
| Item NO. | GAT-667 |
| Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | 0.6s |
| Stretching-out flap length | 285 mm |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s,can be changed to fit different demands |
Security Features
◊ Smart card reader compatible with a variety of card such as IC and ID card.
◊ Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control,attendance check or fare collection.
◊ Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
◊ LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
◊ Can open the turnstile by two input signals (signal can be input by access controller, button or other equipments)
◊ Provide audible sound prompt and information display function.
◊ The flaps will open automatically during power interruption, and recover N/C mode after poweron(optional)
Our Service
1. Security solution provider, can help you save time and costs.
2 .Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
